4-Pole S-VHS Breakouts

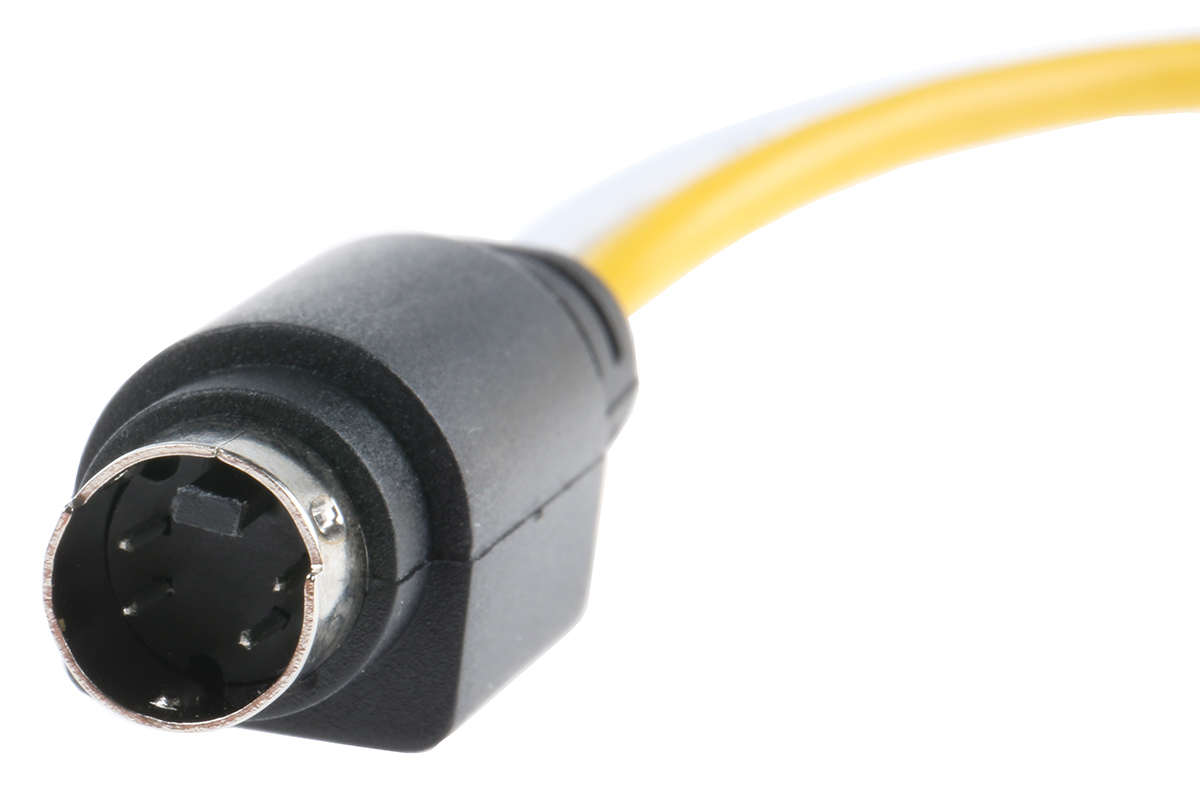

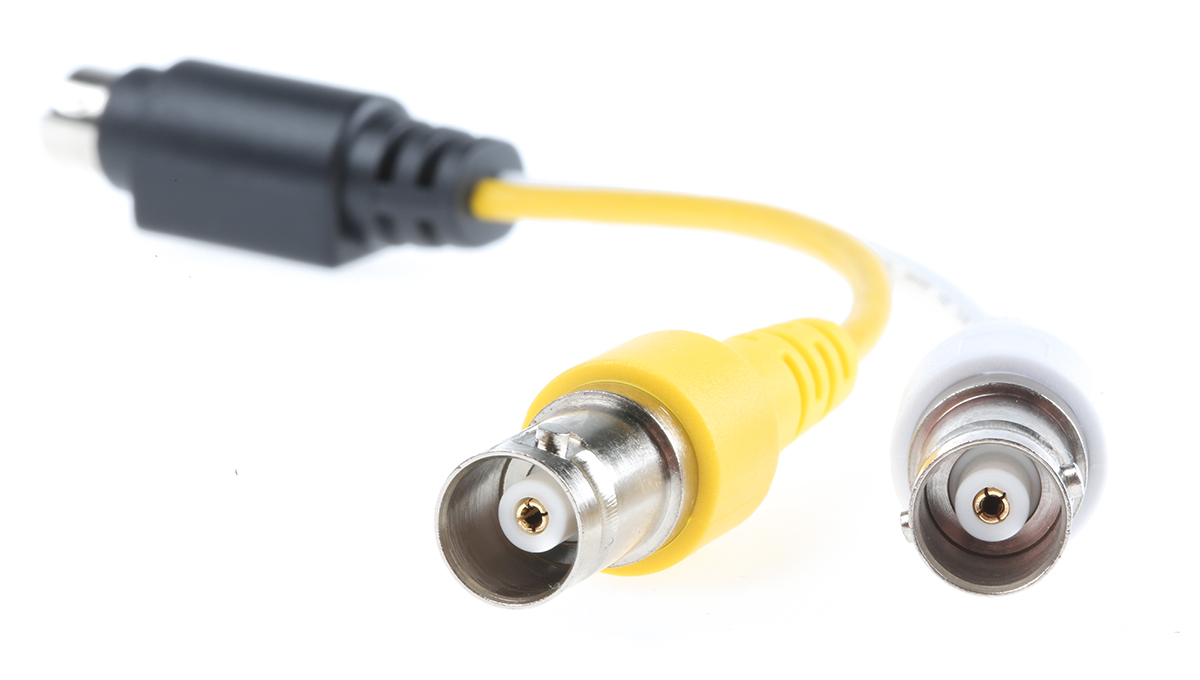

4 pole mini-DIN (s-video) male to 2 pieces of 75Ω mini coax each with a female BNC connector
The signal from the 4 pole connector is split into the two component parts of Luminance and Chrominance
Each of these signals is sent to one of the BNC's identified by colour, Luminance - yellow, Chrominance - white
Enables longer cable runs to be achieved
The signal from the 4 pole connector is split into the two component parts of Luminance and Chrominance
Each of these signals is sent to one of the BNC's identified by colour, Luminance - yellow, Chrominance - white
Enables longer cable runs to be achieved
Male 4 Pin mini-DIN to Female BNC x 2 DIN Cable 150mm
Manufacturer:
Van Damme
Manufacturer Part No:
110-028-919
Enrgtech Part No:
ET13921328
Warranty:
Manufacturer
£ 16.33
Checking for live stock
Connector 1:
4 Pin mini-DIN
Connector 2:
BNC x 2
Connector 1 Gender:
Male
Connector 2 Gender:
Female
Length:
150mm
Cable Type:
S-Video
