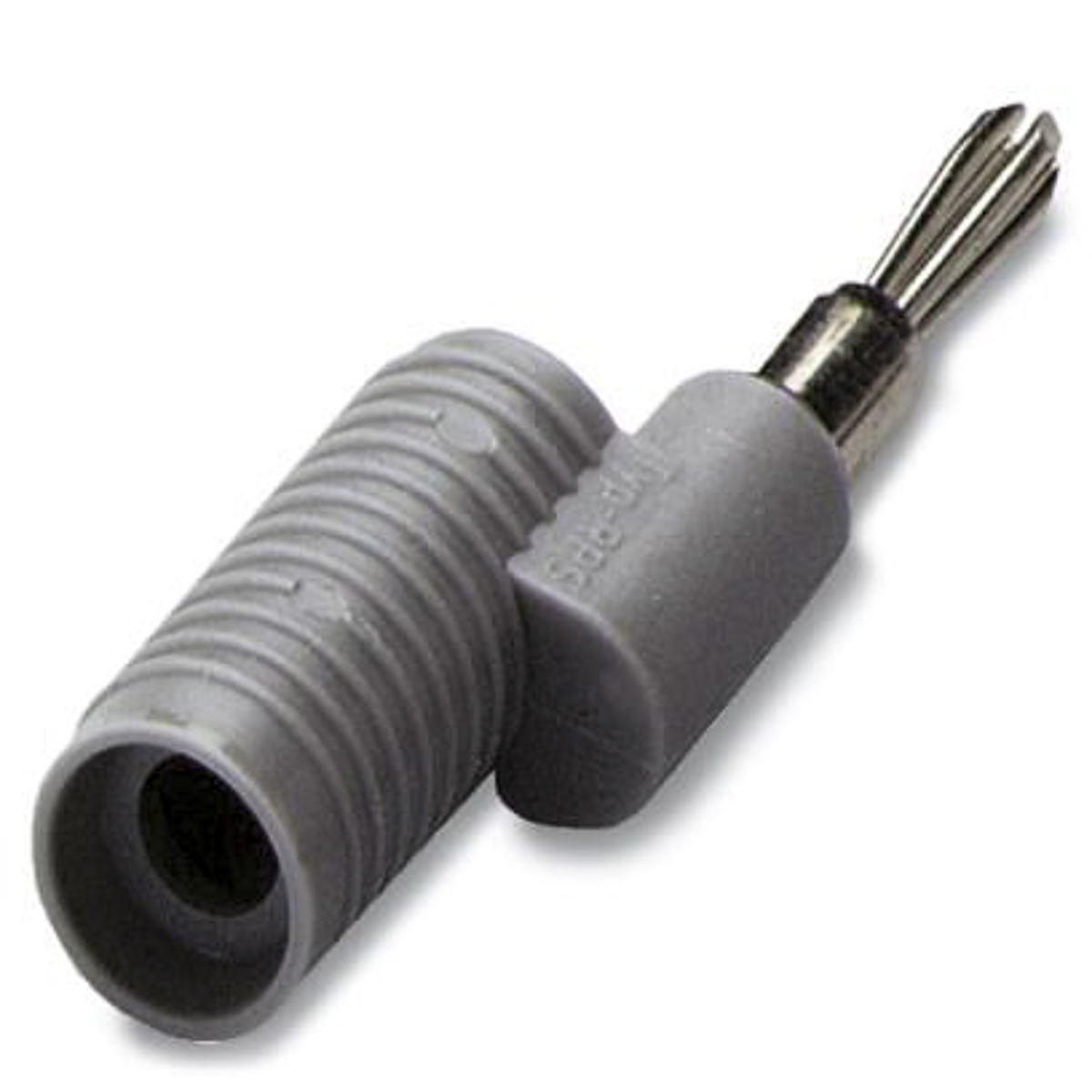

Phoenix Contact Reducing Bridge, Test Plug Adapter Type, PA Insulation - RPS - 0201647 When your test plug is too big for your terminal blocks, reach for this reducing bridge from Phoenix Contact. The hole in the top fits a standard 4mm test plug, making it compatible with most existing setups. Connection is simple and tool-free – simply clip in and pull out your test plug and you're all sorted.
A narrower 2.3mm pin at the bridge's base lets you fit your standard test plug into modular terminal blocks with smaller sockets, such as the double-level PTTB (687-9638). This means you can increase the flexibility of your test equipment. The silver-plated brass pin gives you a durable and reliable contact. An insulating polyamide cover shields your hands from the pins, so you stay safe as you work. Features & Benefits • Operates reliably between -60°C and +105°C, so you can carry out checks in extreme temperatures
• Meets EN 45545-2, HL1 to HL3, meaning it's safe to use in railway applications
• UL 94-V2 flammability rating indicates vertical burning stops inside 60 seconds, limiting the spread of flames
• Passes NFPA 130 standard for surface optical smoke density and gas toxicity to boost fire safety
