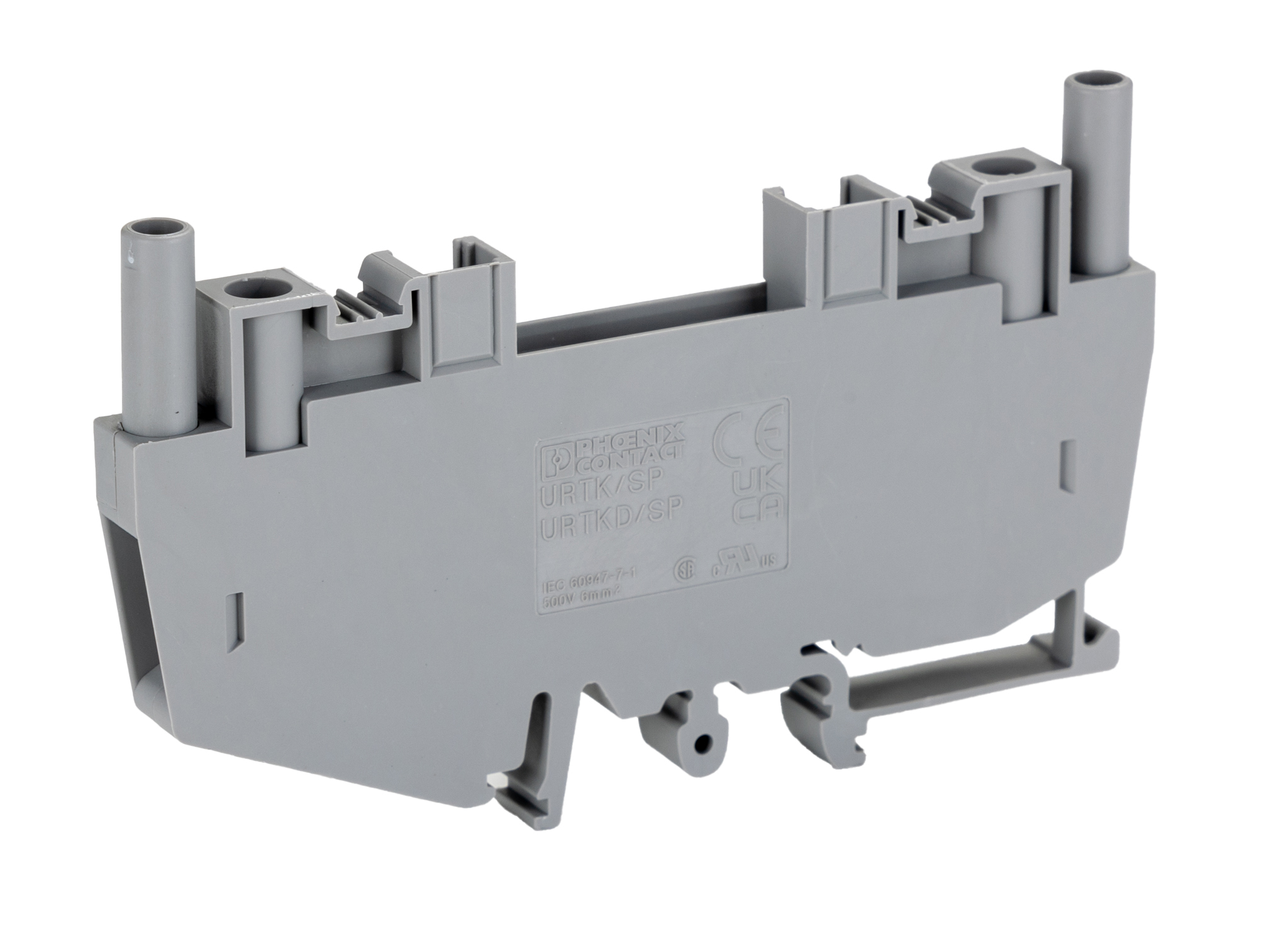

Phoenix Contact URTK/SP Series Test Disconnect Terminal Block, 41A Current Rating, 500V Voltage Rating - 0311126 This test disconnect terminal block is designed for secure and efficient wiring connections, accommodating wire sizes from 20AWG to 8AWG. It features a nominal voltage rating of 500V and can handle a current of 41A. With a maximum operating temperature of +110°C and a minimum of -60°C, this device is suitable for harsh conditions, making it applicable for industrial use. Features & Benefits • Integrated touch-proof test sockets improve safety
• Dual connection option enhances installation flexibility
• Screw connection type provides secure fastening
• Complies with IEC 60947-7-1 standards
• Compact dimensions facilitate installation in tight spaces
• Capable of supporting high current applications Applications • Ideal for precise testing within electrical systems
• Suitable for automation and control circuits
• Designed for use in harsh environmental conditions
• Utilised in rail transport and industrial machinery Can it accommodate different wire sizes? Yes, it supports conductors from 0.5mm² to 10mm². Is it suitable for outdoor use? The operating temperature range accommodates various settings. Will it maintain performance under high temperatures? It operates effectively at temperatures up to 110°C without loss of functionality. Can it handle high surge voltages? Yes, it is rated for a surge voltage of 6kV.
