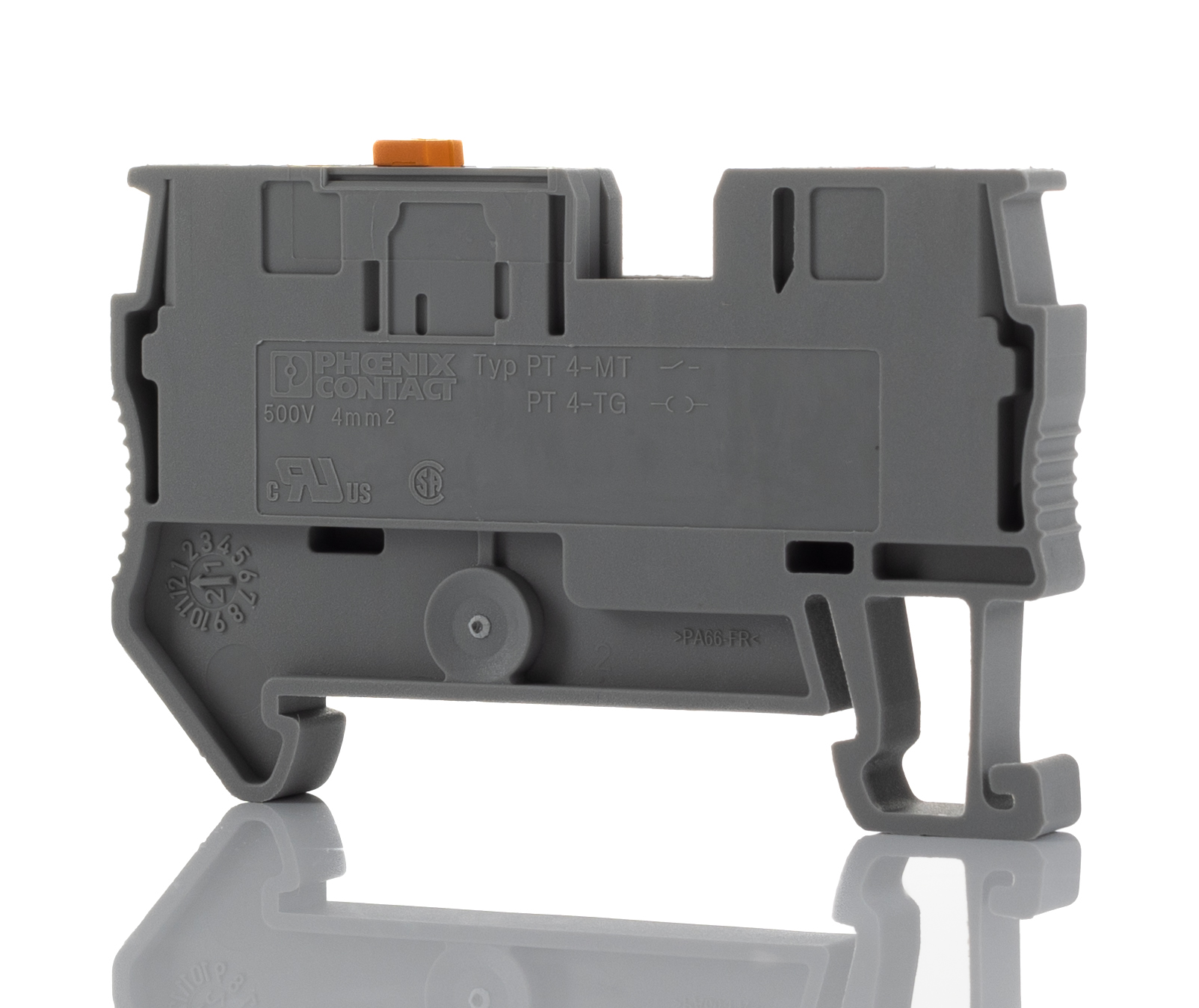

Phoenix Contact Knife Disconnect Terminal Block, Push-In Terminals, PA Housing - PT 4-MT - 3211933
Keep electrical hazards at bay on your DIN rail networks with this knife disconnect terminal block from Phoenix Contact. It has lever-type captive points that let you quickly switch off the circuit without the hassle of adjusting the wiring. Thanks to PA housing, this unit is equipped to handle the demands of harsh environments. As the material also serves as an insulator, you can handle it safely without risking shocks.
The terminal block is DIN rail-mounted, meaning you don't need tools to install it, so that's one less thing to worry about. An open side panel makes it easy to integrate with other electrical components on your circuit. With a 20A current rating, it's just the thing for high-current-consuming applications such as machine building. Features & Benefits • Surge voltage rating of 6kV shows that it handles sudden power surges without suffering damage
• Low power dissipation of 1.02W for energy efficiency
• Accommodates wire sizes between 24 and 10AWG for versatility
• UL 94-V0 rating indicates that it's self-extinguishing as it stops burning in 10 seconds or less in the event of a fire
The terminal block is DIN rail-mounted, meaning you don't need tools to install it, so that's one less thing to worry about. An open side panel makes it easy to integrate with other electrical components on your circuit. With a 20A current rating, it's just the thing for high-current-consuming applications such as machine building. Features & Benefits • Surge voltage rating of 6kV shows that it handles sudden power surges without suffering damage
• Low power dissipation of 1.02W for energy efficiency
• Accommodates wire sizes between 24 and 10AWG for versatility
• UL 94-V0 rating indicates that it's self-extinguishing as it stops burning in 10 seconds or less in the event of a fire
3211933 PT 4-MT Series Grey, Single-Level, Push In Termination
Manufacturer:
Phoenix Contact
Manufacturer Part No:
3211933
Enrgtech Part No:
ET13268082
Warranty:
Manufacturer
£ 3.13
Checking for live stock
Colour:
Grey
Number of Levels:
Single
Series:
PT 4-MT
American Wire Gauge:
24 → 10AWG
Termination Method:
Push In
Voltage Rating:
400 V
Current Rating:
20A
Pitch:
6.2mm
Minimum Operating Temperature:
-60°C
Maximum Operating Temperature:
+105°C
Standards Met:
CSA, cULus, EAC, REACH
Model Number:
PT 4-MT
