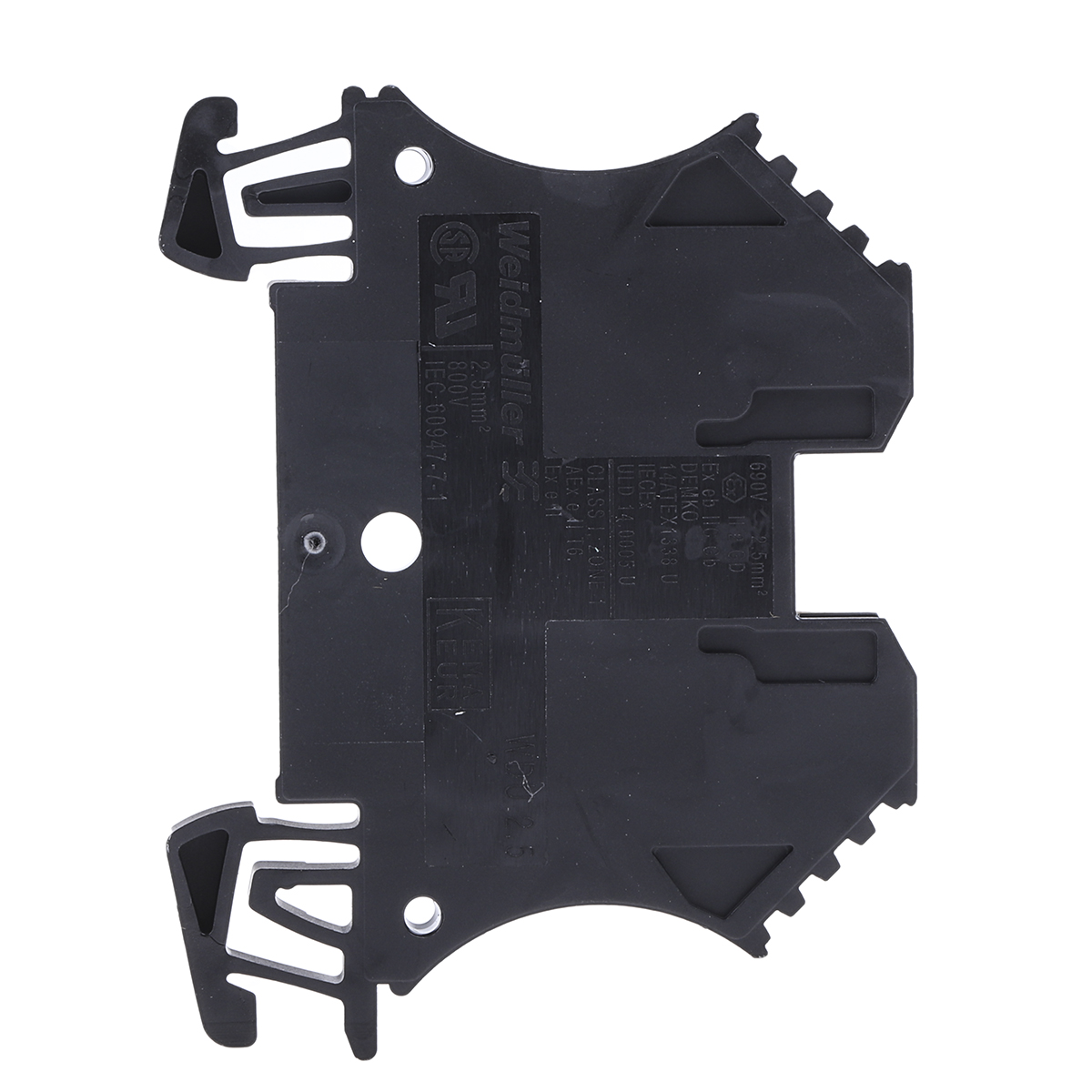

Weidmuller Feed-Through Terminal Block, 800V Voltage Rating, 30 to 12AWG Wire Size - WDU Series - 1020010000 Need a reliable way to connect two wires? This single-level feed-through terminal block from Weidmuller will do the job. It's designed with screw terminals made from steel and tinned copper for dependable conductivity and a secure connection. As this unit accepts solid, stranded and ferrule-ended wires in sizes between 30 and 12AWG, you can tick versatility off your wish list. The block's Wemid housing is resistant to impact and wear, making it a long-lasting choice in tough environments. Features & Benefits • Wide operating temperature range between -50°C and +120°C for use in harsh conditions
• Rear clips mean you'll have it attached to your DIN rail in no time
• Self-extinguishing for safety in the event of a fire
• Compact dimensions of 60 (H) x 5.1 (W) x 46.5mm (D) to maximise packing space on your rail Applications • Power distribution
• Safety systems
• Process control
• Machine automation Can I use this feed-through terminal block in high-power circuits? Thanks to its voltage rating of 800V, this terminal block has no trouble handling high-power applications.
