Test/Isolating

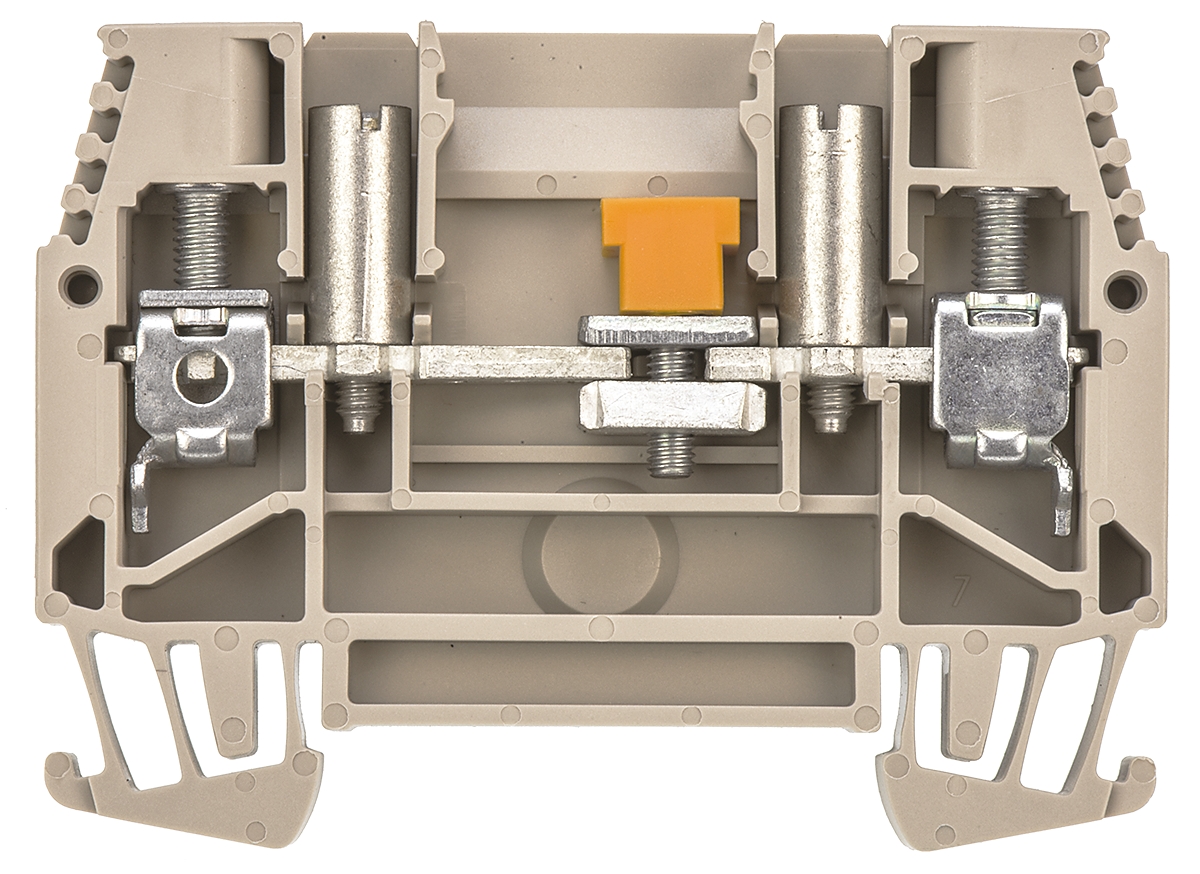

This terminal has a 4mm test socket on the input and output side to take standard test leads. The isolating function is actuated by a screw in the orange housing, so it can be slid to open or close and is locked in place by tightening the screw.
Weidmüller 1016900000 Weidmuller 1016900000 WTL Series Dark Beige, 6mm², Single-Level, Screw Termination
Manufacturer:
Weidmüller
Manufacturer Part No:
1016900000
Enrgtech Part No:
ET17264880
Warranty:
Manufacturer
£ 4.95
Checking for live stock
Colour:
Dark Beige
Number of Levels:
Single
American Wire Gauge:
20 → 8AWG
Series:
WTL
Termination Method:
Screw
Cable CSA:
6mm²
Current Rating:
57A
Voltage Rating:
630 V
Minimum Operating Temperature:
-50°C
Maximum Operating Temperature:
+120°C
Standards Met:
CSA
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=58466&DisplayLogo=False
