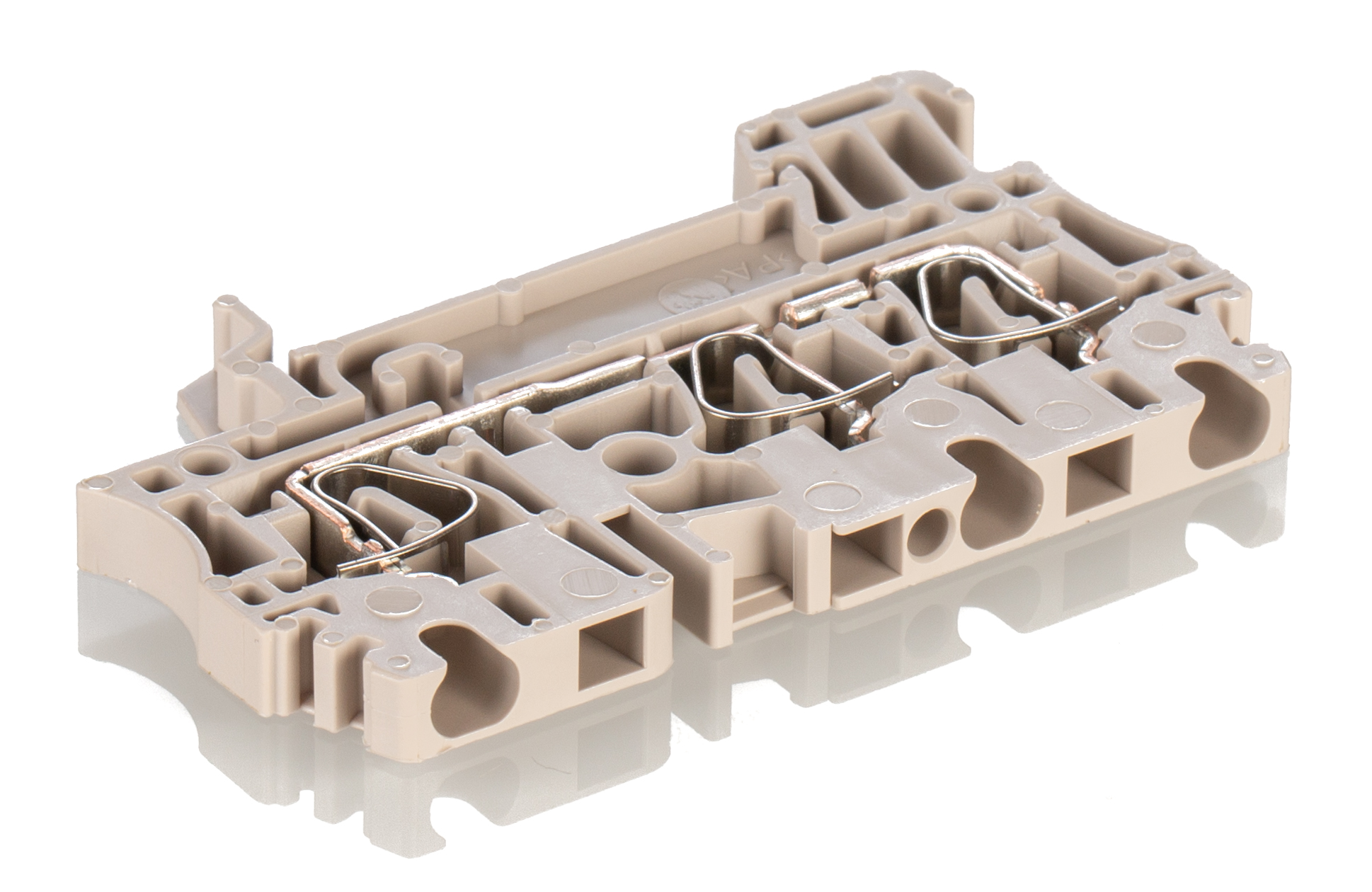

1608540000 Weidmuller ZDU Series Brown, 2.5mm², Single-Level, Clamp Termination

Weidmuller Feedthrough Terminal Blocks Z Series Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series and to other Weidmuller modular terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals. Features and Benefits • One, two, three and four tier available • Tension clamp technology • Available in different colours

For more information please check the datasheets.

Weidmüller Weidmuller ZDU Series Brown, 2.5mm², Single-Level, Clamp Termination

Manufacturer:

Weidmüller

Manufacturer Part No:

1608540000

Enrgtech Part No:

ET17507882

Warranty:

Manufacturer

Checking for live stock

Colour:

Brown

Number of Levels:

Single

American Wire Gauge:

30 → 12AWG

Series:

ZDU

Termination Method:

Clamp

Cable CSA:

2.5mm²

Current Rating:

31A

Voltage Rating:

800 V

Minimum Operating Temperature:

-50°C

Maximum Operating Temperature:

+120°C

NEMKO L92729-c4ae85c8(datasheets)

UL APPROVAL E60693-9a16dd6a(datasheets)

Datasheet-5669e2ee(datasheets)
