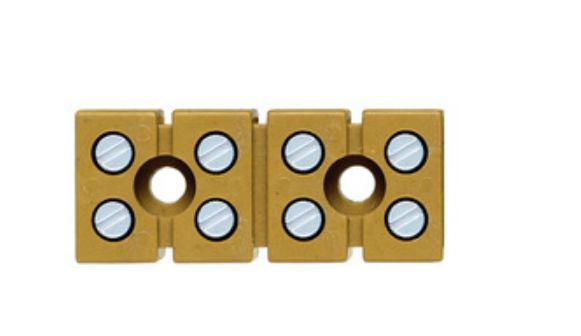

Weidmuller Feed-Through Terminal, 22 to 12AWG Wire Size Range, 5mm Stripping Length - MK Series - MK 3/4 Get wired for success with this feed-through terminal from Weidmuller. You can use it to provide a secure and reliable connection between two conductors. Compact dimensions of 15 (H) x 35.75 (W) x 16.1mm (D) mean the component fits neatly into setups with limited space. It has a light weight of 14.1g, putting minimal strain on your electrical system. As it accepts wires ranging in size from 22 to 12AWG, it's a versatile connecting solution. For snappy assembly, you can attach the terminal rails directly to the housing using screws. • Eight connections for compatibility with multiple devices
• Wide operating temperature range between -60°C and +130°C for use in harsh environments
• Blade size of 0.6 x 3.5mm for precise cuts Applications • Manufacturing equipment
• Automotive wiring
• Energy production
• HVAC controls What's this terminal's current rating? This terminal has a current rating of 24A, so it's suited to applications with moderate power requirements. What colour is this unit? It's yellow in colour, making it easy to spot in a crowded setup.

Weidmüller Weidmuller MK Series Yellow, 2.5mm², 4-Level, Screw Termination

Manufacturer:
Manufacturer Part No:
0274020000
Enrgtech Part No:
ET17508071
Warranty:
Manufacturer
Checking for live stock
Colour:
Yellow
Number of Levels:
4
Series:
MK
American Wire Gauge:
22 → 12AWG
Termination Method:
Screw
Cable CSA:
2.5mm²
Voltage Rating:
400 V
Current Rating:
24A
Minimum Operating Temperature:
-60°C
Maximum Operating Temperature:
+130°C
Standards Met:
CE, CSA, CURUSEX, EAC
pdf icon
0274020000_MK_3_4-8d247f08(datasheets)
pdf icon
Catalogue - Terminal Blocks Klippon Connect-aac56a60(datasheets)
