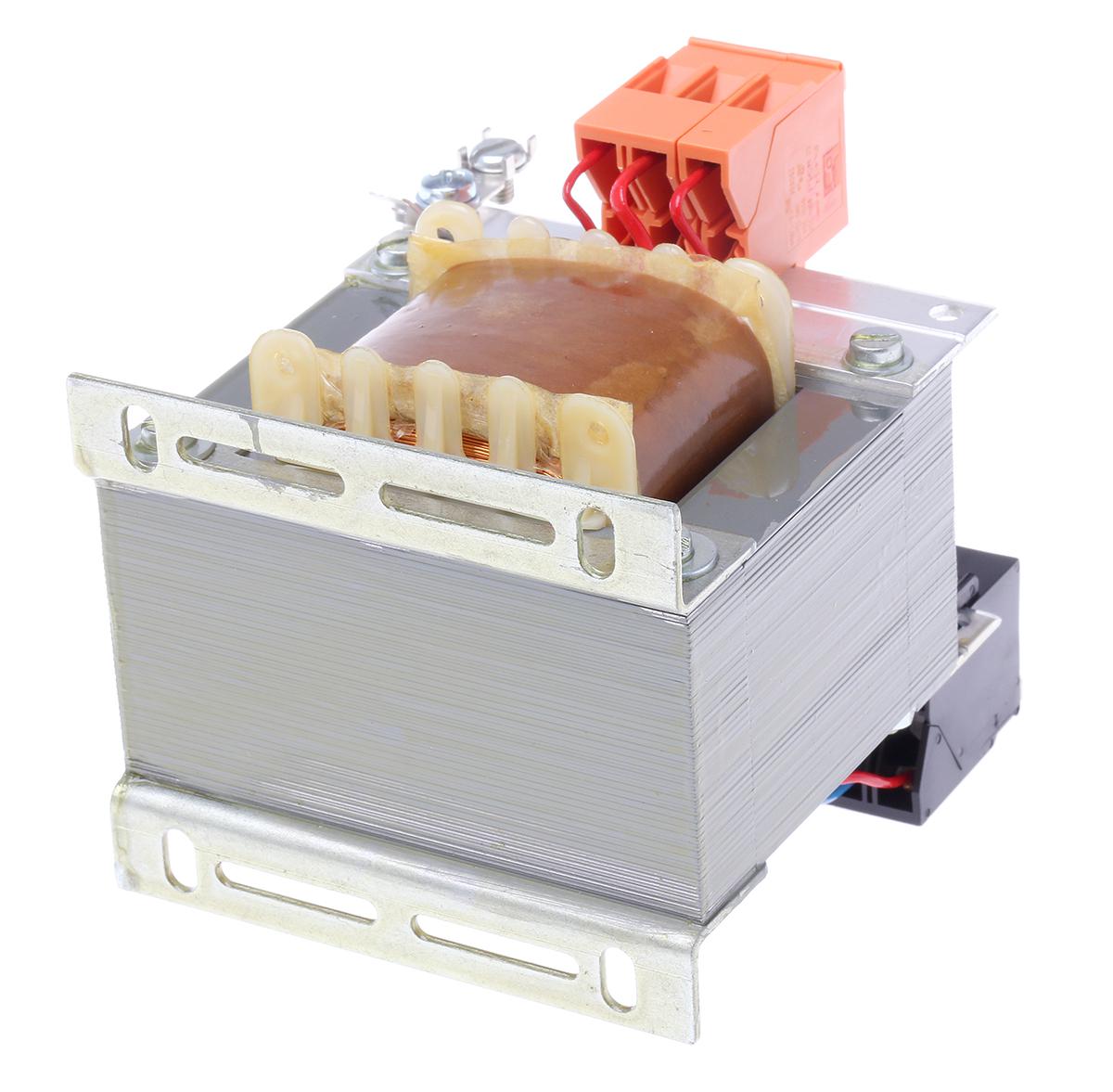

Isolating Transformers : 0-230-400Vac Primary, 2x60-55-0-55-60Vac Secondary, DIN Mount
High quality multi-purpose isolating transformers suitable for a wide range of applications requiring selected secondary voltages.
Panel mounting via the fixing holes
Optional DIN rail mounting bracket for standard 35mm DIN rail (63 to 250VA units)
Fully shrouded screw and push-on crimp terminals with permanent marking
High efficiency, low regulation
Double reinforced insulation E (UL class 105)
4kV flash tested primary/secondary
Impregnated for protection against humidity
Insulation catagory Class E
Approvals
VDE, UL recognised for Canada UL recognised
Standards
EN61558
MIT/I/100, 100VA DIN Rail Transformer, 230V ac, 400V ac Primary 2 x, ±110V ac, ±120V ac, ±55V ac, ±60V ac Secondary
£ 87.19
Checking for live stock
Number of Outputs:
2
Maximum Temperature:
+40°C
Dimensions:
96 x 106.5 x 84mm
Weight:
2.2kg
Primary Voltage Rating:
230V ac, 400V ac
Length:
96mm
Width:
106.5mm
Depth:
84mm
Secondary Voltage Rating:
±110V ac, ±120V ac, ±55V ac, ±60V ac
Mounting Type:
DIN Rail
Power Rating:
100VA
