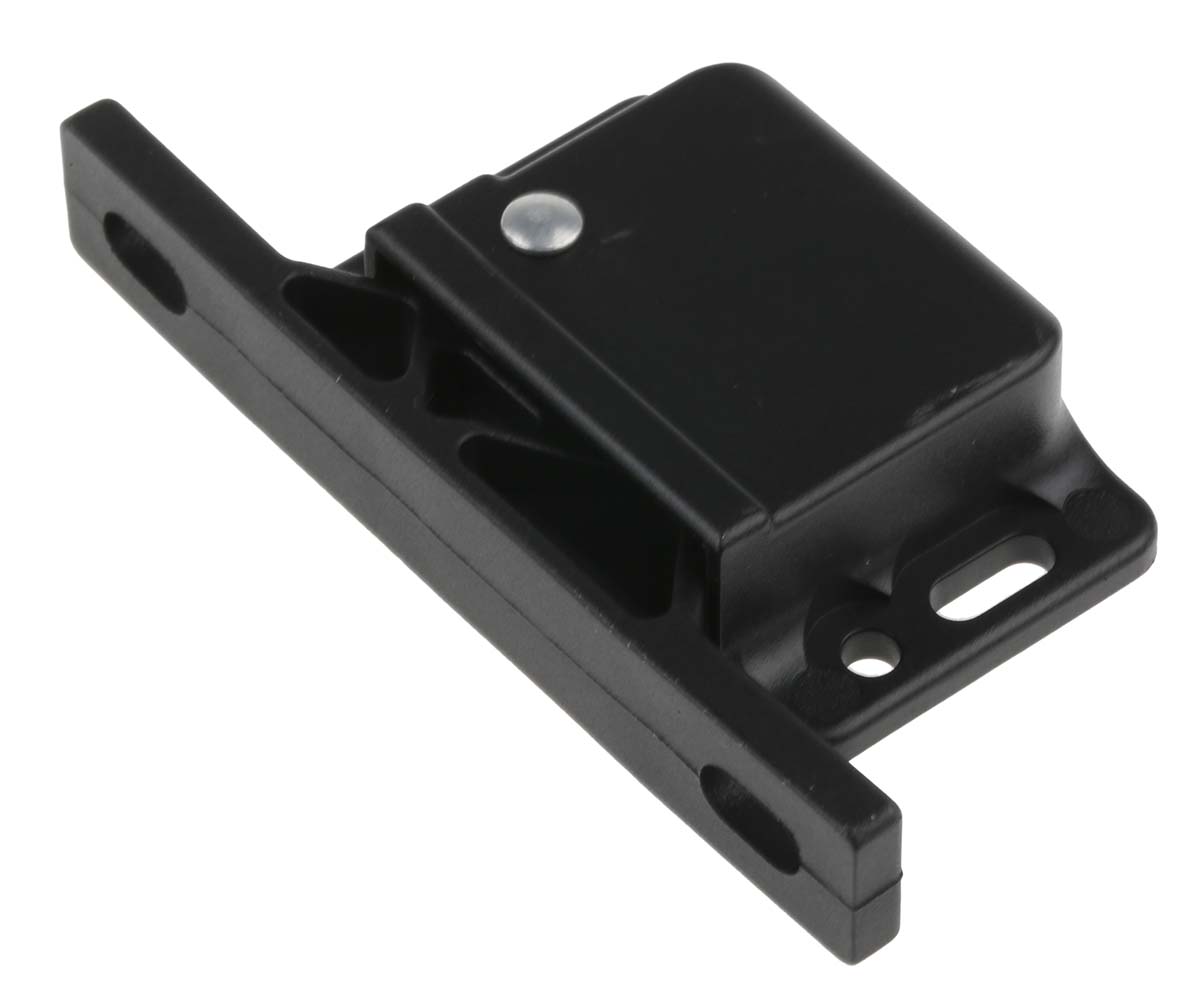

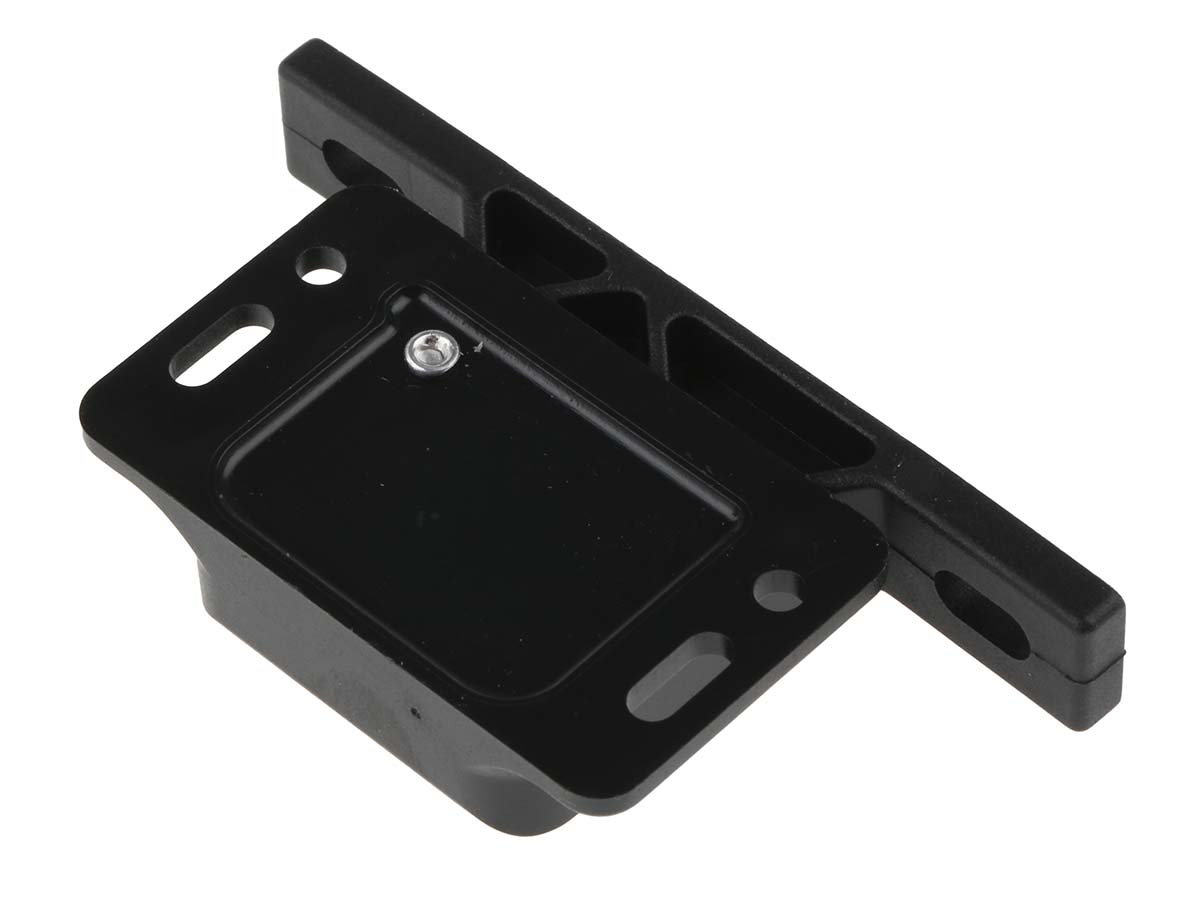

161-1956 RS Pro , Side-mount Grab Doorcatch, 44N pull force
161-1956 RS Pro , Side-mount Grab Doorcatch, 44N pull force

Side Mount Grabber Door Catch This side mount grabber door catch is manufactured from fibre reinforced nylon, being durable and corrosion resistant. Push to close, pull to open the latch with spring loaded over centre action Features & Benefits Can be screwed or riveted to door/frame Mounts inside enclosure Heavy duty keeper Push to close, pull to open Spring loaded over centre action

RS Pro , Side-mount Grab Doorcatch, 44N pull force

Manufacturer:
Manufacturer Part No:
161-1956
Enrgtech Part No:
ET16889656
Warranty:
Manufacturer
£ 7.17
Checking for live stock
Catch Type:
Grabber Catch
Material:
Nylon
Width:
13.5mm
Length:
28.0mm
Fixing Hole Size:
3.4mm, 3.4 x 8.4mm, 4.3 x 8.3mm
Strike Fixing Hole Distance:
55.0mm
Catch Fixing Hole Distance:
40.5mm
Dimensions:
23.5 x 11.4 x 74 mm, 28 x 13.5 x 48mm
pdf icon
RS Pro Datasheet(Technical Reference)
