Slave Rollers, Series 3500 Poly V
Style Poly V to be used with motorised Rollers EC200 Poly V and belts
Drive components are located away from conveying area (important to prevent soiling)
Standard Poly V belts, flexible PJ type: ISO9981;DIN 7867; pitch 2.24mm
Poly V belts with maximum of 4 ribs giving more than double the torque transmission achieved with standard round belts
Flexible belts for higher hole pitch tolerances
No deformation of tubes as a result of grooves
Drive components are located away from conveying area (important to prevent soiling)
Standard Poly V belts, flexible PJ type: ISO9981;DIN 7867; pitch 2.24mm
Poly V belts with maximum of 4 ribs giving more than double the torque transmission achieved with standard round belts
Flexible belts for higher hole pitch tolerances
No deformation of tubes as a result of grooves

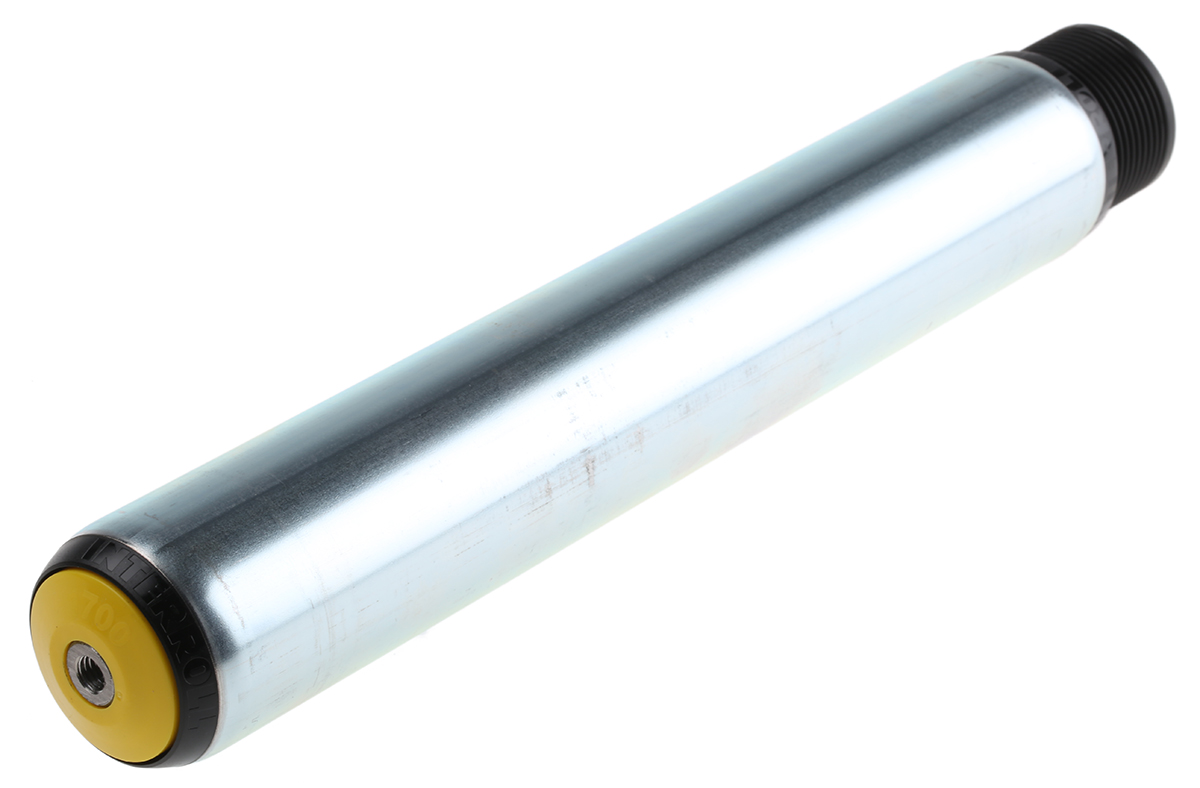

M8 Poly V Roller Drive, 50mm x 295mm
Manufacturer:
Interroll
Manufacturer Part No:
35PAJAAN7X
Enrgtech Part No:
ET14143654
Warranty:
Manufacturer
£ 16.61
Checking for live stock
Roller Diameter:
50mm
Roller Length:
295mm
Component Type:
Poly V Slave Roller
Load Capacity:
35kg
Inside Frame Width:
331mm
Spindle Thread Size:
M8
Maximum Conveying Speed:
0.8m/s
Overall Length:
331mm
