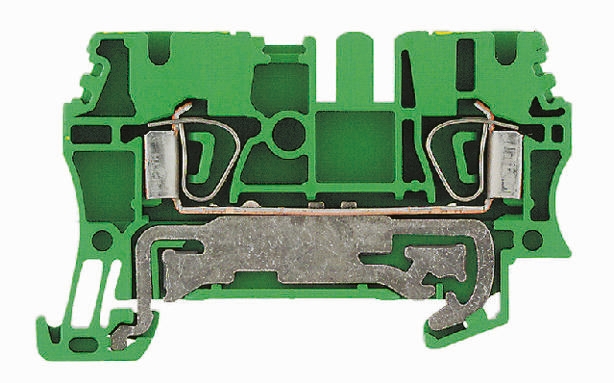

1745250000 Weidmuller 2-Way ZPE 16 Earth Terminal Block, 14 → 4 AWG Wire, Clamp, Wemid Housing

Earth Terminals Designed to compliment the ’W’ screw series the screwless ’Z’ series DIN mounting terminals offers a top entry system that saves time and space. Quick & easy installation as the conductor is simply inserted by use of a clamping system. The top entry system means the conductor entry and clamp actuation access is from the same direction. Given a continuous temperature rating of 120°C, they are self-extinguishing to UL94V-0.

For more information please check the datasheets.

Weidmüller 1745250000 Weidmuller 2-Way ZPE 16 Earth Terminal Block, 14 → 4 AWG Wire, Clamp, Wemid Housing

Manufacturer:

Weidmüller

Manufacturer Part No:

1745250000

Enrgtech Part No:

ET18858371

Warranty:

Manufacturer

Checking for live stock

Earth Block Type:

ZPE 16

Wire Size:

14 → 4 AWG

Colour:

Green

Number of Ways:

Termination Method:

Clamp

Housing Material:

Wemid

Voltage Rating:

800 V

Length:

82.5mm

Width:

12.1mm

Height:

51.5mm

Maximum Operating Temperature:

+100°C

Minimum Operating Temperature:

-50°C

UL APPROVAL E60693-9a16dd6a(datasheets)

ZDU / ZPE Series Terminal Blocks-a97402af(datasheets)
