The Amphenol ICC (FCI) 10046971-001LF is a high-performance dual-edge edgeboard connector featuring 64 contact positions. Engineered for superior signal integrity, this connector supports both power and data transmission applications across PCB edges. Its dual-edge design allows for efficient board-to-board or card-to-board interfacing, making it ideal for space-constrained electronic assemblies. The connector is compliant with RoHS standards and built to handle robust mechanical and electrical performance in demanding environments.

Why Choose the Amphenol ICC (FCI) Edgeboard Connector?

Choosing this connector means investing in durability, signal reliability, and compact design. It offers enhanced alignment features, secure latching, and excellent mating cycles, ensuring long-term, stable connections. The dual-edge contacts increase circuit density while simplifying layout requirements. It’s a trusted solution from a renowned manufacturer known for quality and innovation in connectivity.

Where Can I Use the Amphenol ICC (FCI) 10046971-001LF Dual-Edge Edgeboard Connector, 64 Position?

This connector is versatile and suits various electronic systems that demand high-density, reliable edgeboard interconnects, such as:

  • Networking equipment and servers
  • Industrial automation and control systems
  • Telecommunications infrastructure
  • Embedded computing platforms
  • Test and measurement devices
  • Storage and data handling systems
  • Consumer electronics and multimedia devices.

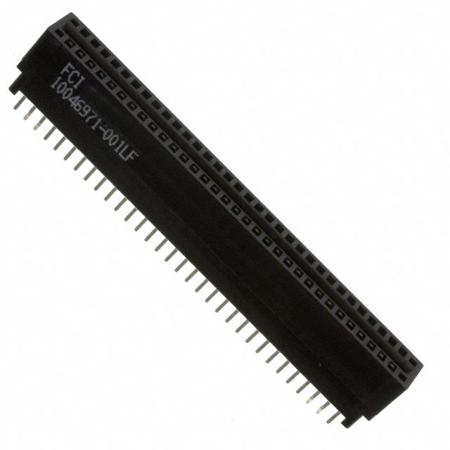

Amphenol ICC (FCI) 10046971-001LF

Manufacturer:
Manufacturer Part No:
10046971-001LF
Enrgtech Part No:
ET17511587
Warranty:
Manufacturer
£ 6.79
Checking for live stock
Flange Feature:
-
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Material - Insulation:
Thermoplastic
Card Thickness:
0.062" (1.57mm)
Number of Positions/Bay/Row:
32
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
64 (Power)
Card Type:
Non Specified - Dual Edge
REACH Status:
REACH Affected
edacadModel:
10046971-001LF Models
Number of Rows:
2
edacadModelUrl:
/en/models/1493072
Package:
Tray
Gender:
Female
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Kinked Pin, Solder
standardLeadTime:
10 Weeks
Features:
-
Mounting Type:
Through Hole
Color:
Black
Series:
Power Edge
Operating Temperature:
-5°C ~ 105°C
Read Out:
Dual
Pitch:
0.100" (2.54mm)
Contact Type:
Cantilever
Contact Material:
Copper Alloy
Base Product Number:
10046971
ECCN:
EAR99
pdf icon
Mult Devs - material chg 30/MAR/2021(PCN Design/Specification)
pdf icon
GS-12-338 Product Specs(Datasheets)
pdf icon
Laser Marking 08/Nov/2008(PCN Packaging)
pdf icon
10046971 Drawing(Product Drawings)
