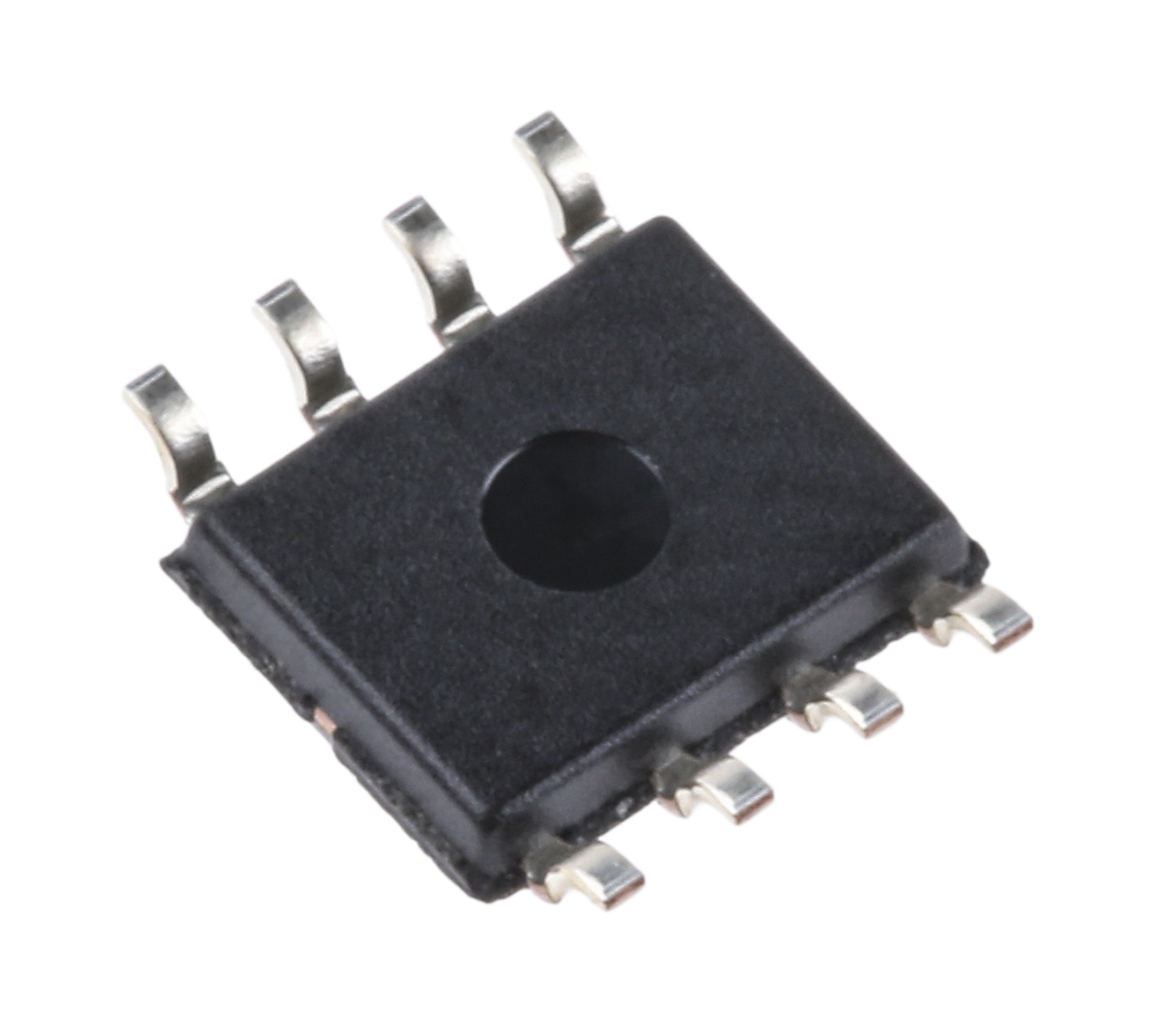

M24C02-WMN6TP, 2kbit Serial EEPROM Memory, 900ns 8-Pin SOIC Serial-I2C

Memory Size:

2kbit

Interface Type:

Serial-I2C

Package Type:

SOIC

Mounting Type:

Surface Mount

Pin Count:

8

Organisation:

256 x 8 bit

Minimum Operating Supply Voltage:

2.5 V

Maximum Operating Supply Voltage:

5.5 V

Programming Voltage:

2.5 → 5.5V

Number of Bits per Word:

8bit

Dimensions:

4.9 x 3.9 x 1.25mm

Maximum Random Access Time:

900ns

Data Retention:

200yr

Automotive Standard:

AEC-Q100

Maximum Operating Temperature:

+85 °C

Minimum Operating Temperature:

-40 °C

Number of Words:

256
