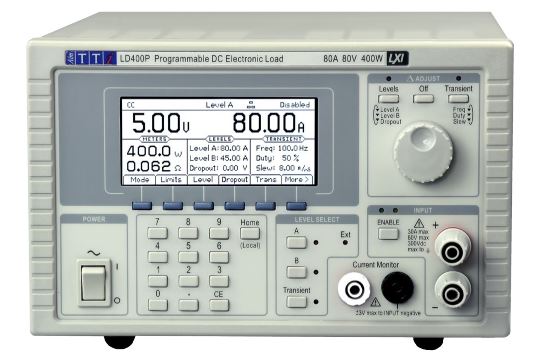

Aim-TTi LD400 Series Electronic Load, 0 to 80 A Constant Current Mode Range, 0 to 80 V Constant Voltage Mode Range - LD400P This electronic load by Aim-TTi is a versatile testing tool suitable for a wide range of applications in the fields of automation, electronics, electrical, and mechanical industries. It offers constant current, resistance, power, voltage, and conductance modes, making it ideal for testing power sources like batteries, solar cells, and electronic power supply units. The LD400 Series electronic loads provide high accuracy and resolution for precise testing requirements. Features & Benefits • Constant current, resistance, power, voltage, and conductance modes for versatile testing options
• Wide voltage/current range of 0-80V and 0-80A, suitable for various applications
• Built-in transient generator with variable slew rate for dynamic testing
• Front and rear input terminals for flexibility in connectivity

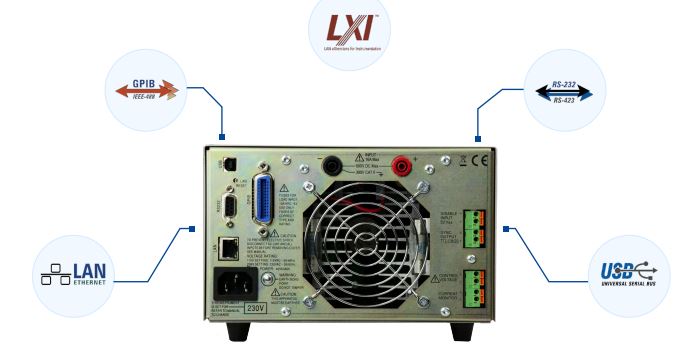

• USB, RS-232, GPIB, and LAN interfaces for easy integration into test setups Applications • Testing of normal voltage-source power supplies
• Constant current discharge testing of batteries
• Load testing of constant current power supplies
• Simulation of resistive loads for detailed power source regulation testing Can it simulate resistive loads for power source regulation testing? Yes, the electronic load can simulate a standard resistive load by providing a current drain proportional to voltage, allowing for accurate power source regulation testing. Will it provide precise controllable resistance with high power dissipation? Yes, the load offers precisely controllable resistance with high temperature stability over a wide range, ensuring reliable and accurate testing results. Is it suitable for testing constant current power supplies? Yes, the electronic load operates as a high-power shunt regulator, making it ideal for load testing of constant current power supplies in various applications.
