Harmony XB4 Emergency Stop Push Buttons Schneider range of emergency stop push buttons from the Harmony range feature trigger action actuation. This eliminates the complicated decision of which emergency stop push button you need for the desired application and which standard it must conform to. This range is designed to comply with the two key standards IEC 60204 and ISO 13850. The Harmony XB4 range offers a metal series of emergency stop push button complete units with a range of push button diameters and operating types. Features and Benefits Trigger action actuation Complete metal emergency stop push button unit

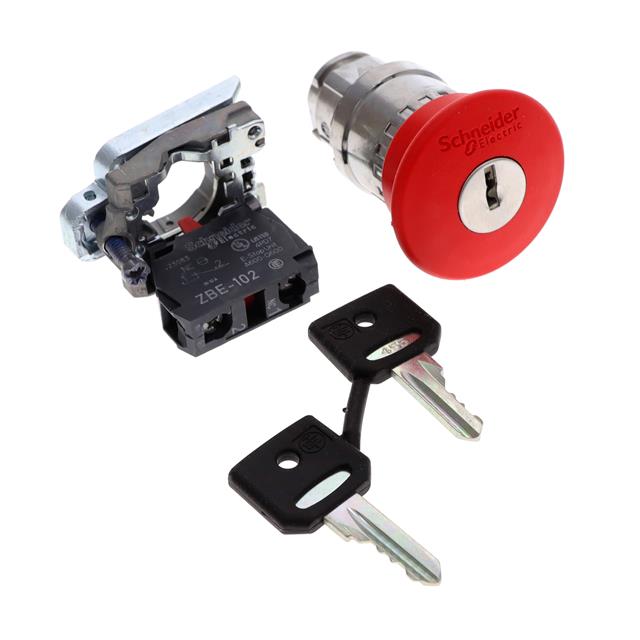

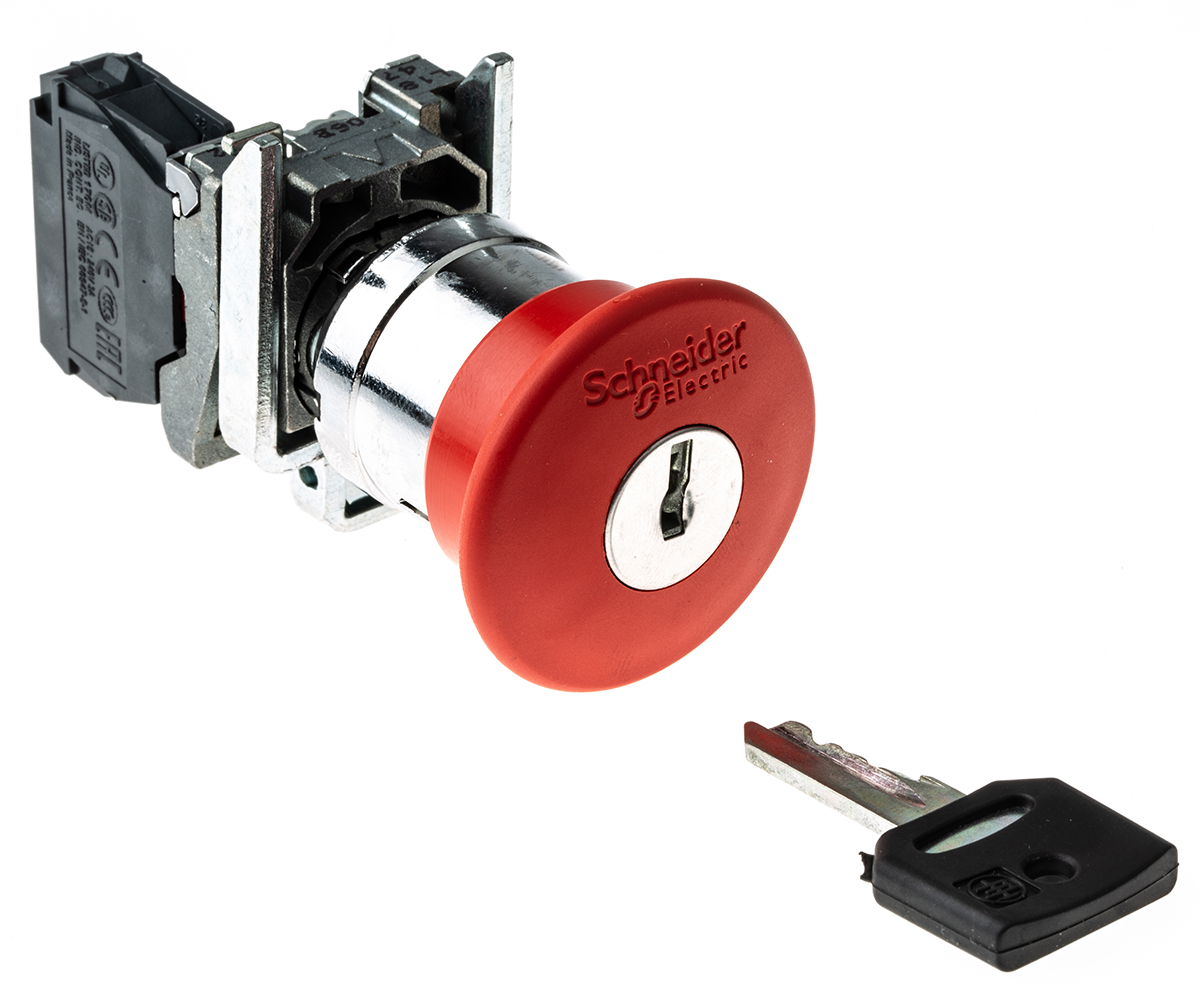

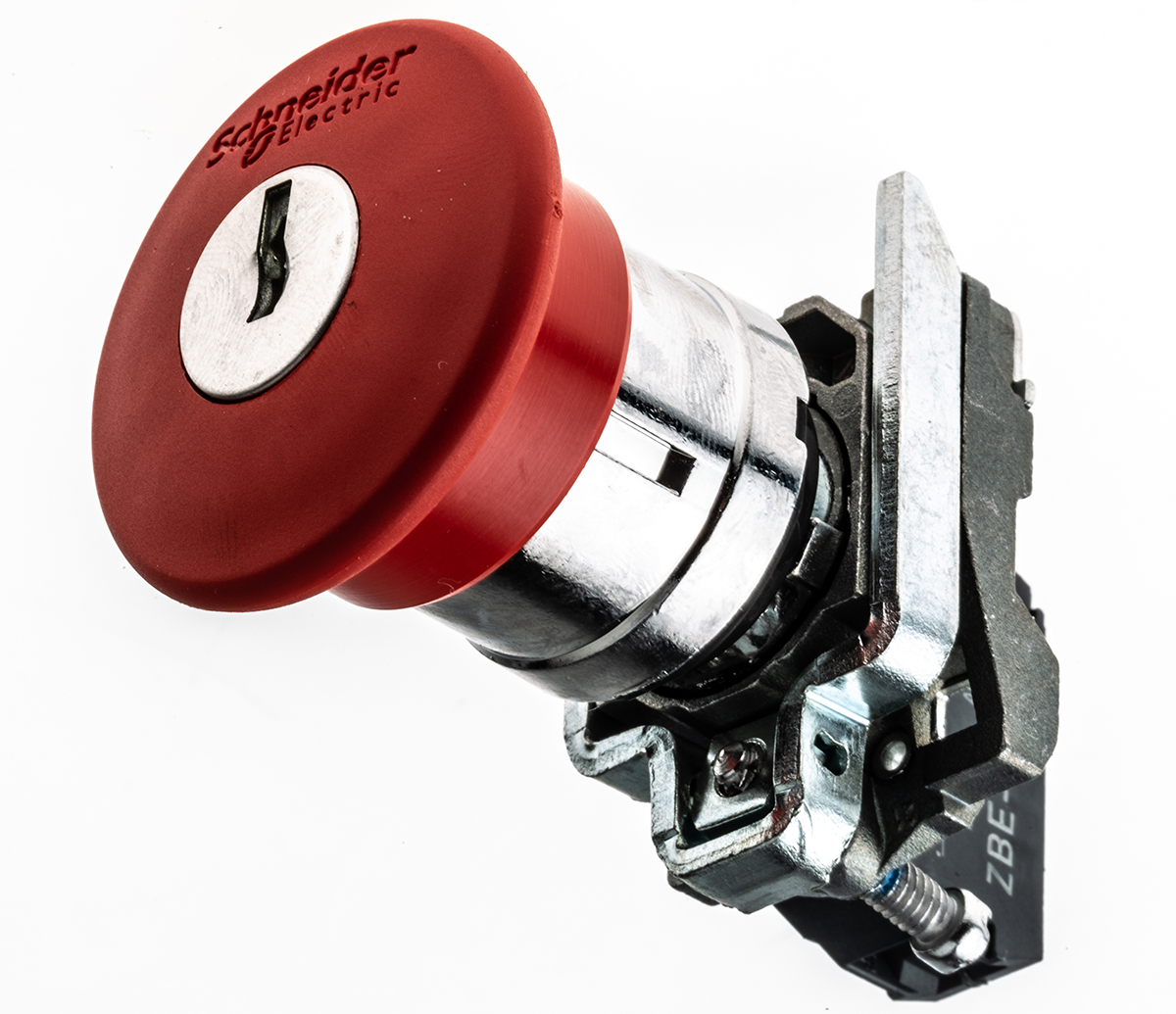

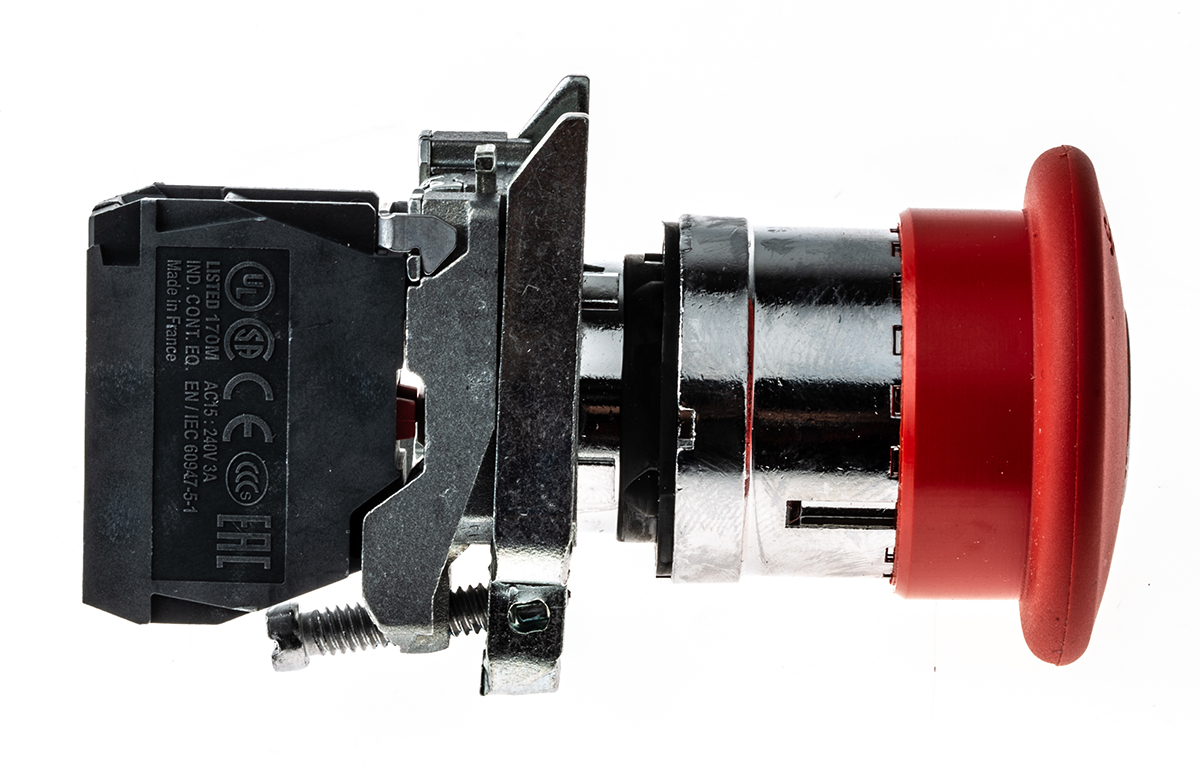

Schneider Electric Harmony, Red, Key Reset 40mm Mushroom Head Emergency Button

Manufacturer:
Manufacturer Part No:
XB4BS9442
Enrgtech Part No:
ET13862929
Warranty:
Manufacturer
£ 67.93
Checking for live stock
Better World Verification:
Green Premium
Better World Product:
Yes
Illuminated:
No
Mounting Type:
Panel Mount
IP Rating:
IP66, IP67, IP69(IP69K)
Pole and Throw Configuration:
SPST
Series:
Harmony XB4
Colour:
Red
Voltage Rating:
600V ac
Push Button Shape:
Round
Height:
47mm
Width:
40mm
Depth:
77.5mm
Bezel Material:
Metal
Contact Configuration:
1NC
Cutout Diameter:
22mm
Push Button Material:
Plastic
Supply Current:
1.2A
Push Button Actuation:
Key Release
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw Terminal
Voltage Rating - DC:
125 V
Operating Temperature:
-40°C ~ 70°C
Reset Operation:
Key Lock
Panel Cutout Dimensions:
Circular - 22.00mm Dia
title:
XB4BS9442
Voltage Rating - AC:
120 V
REACH Status:
REACH Affected
Includes:
-
Switch Function:
On-Off
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
SPST-NC
standardLeadTime:
5 Weeks
Current Rating (Amps):
6A (AC), 550mA (DC)
Ingress Protection:
IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof
Features:
-
Mounting Type:
Panel Mount, Front
Series:
Harmony XB4
Packaging:
Box
Illumination Voltage (Nominal):
-
ECCN:
EAR99
pdf icon
Catalogue Harmony XB4(Technical Reference)
pdf icon
Datasheet XB4BS9442(Technical Reference)
pdf icon
Machine Guarding and Safety Range Overview(Technical Reference)
pdf icon
Packaging Automation(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Packaging Machines Application Software(Technical Reference)
pdf icon
Green Premium ecolabel(Technical Reference)
pdf icon
XB4BS9442(Datasheets)
