Schneider Electric Harmony XB4 Series - Emergency Stop Push Button Introducing the world-class Harmony XB4 series of emergency stop pushbuttons by Schneider Electric. The range of XB4 provides you with an extra safeguard in your working environment. The products within the XB4 series are notably durable and can perform well within various environments. Features and benefits

  • Effortless to use "turn to release" functionality for easy reset once activated

  • Chromium plated metal panel with prominent red round push button, easily alerting to the eye

  • 2 NC contacts, for simple configuration

  • Short-circuit protection using a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1

  • Conforming to several industry standards including, EN/IEC 60204-1, 60947-1, 60947-5-1 and more

  • Rated NEMA 13 & NEMA 4X, providing additional protection against environmental disturbances such as dust, oil or spraying of water (primarily fit for indoor use)

  • The XB4 E-Stop buttons have a mechanical durability of 300000 cycles

  • The base unit E-Stop works well in temperatures ranging from -40°C to 70°C

  • IP 65, IP 66, IP 67 & IP 69K rated conforming to IEC 60536, further protecting your device from dust ("dust tight rated") and protected against heavy seas or powerful jet washers at 7,000,000 Pa at 55 degrees celsius

  • Schneider Green Premium product as standard across the XB6 Emergency Stop Button range

  • 8-month manufacturer warranty with Schneider
Applications
  • Machine, chemical & Marine applications (particularly with water/chemical involvement).

  • Service sectors such as restaurants, kitchens, car washes and more.

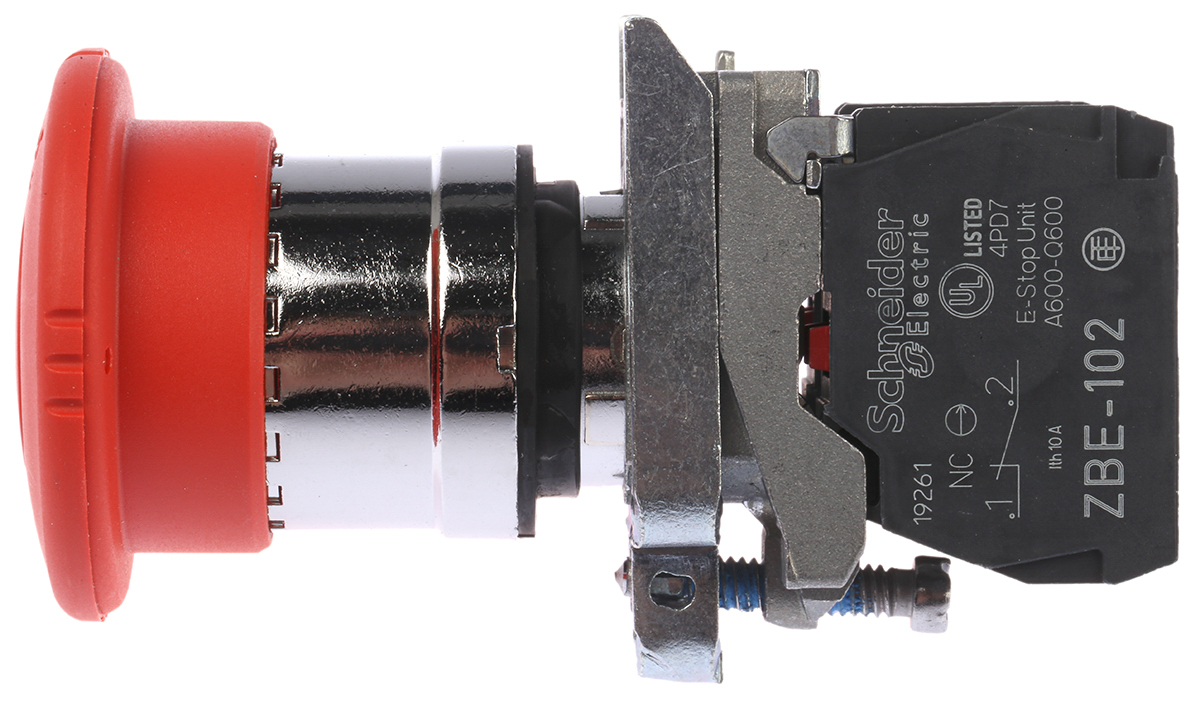

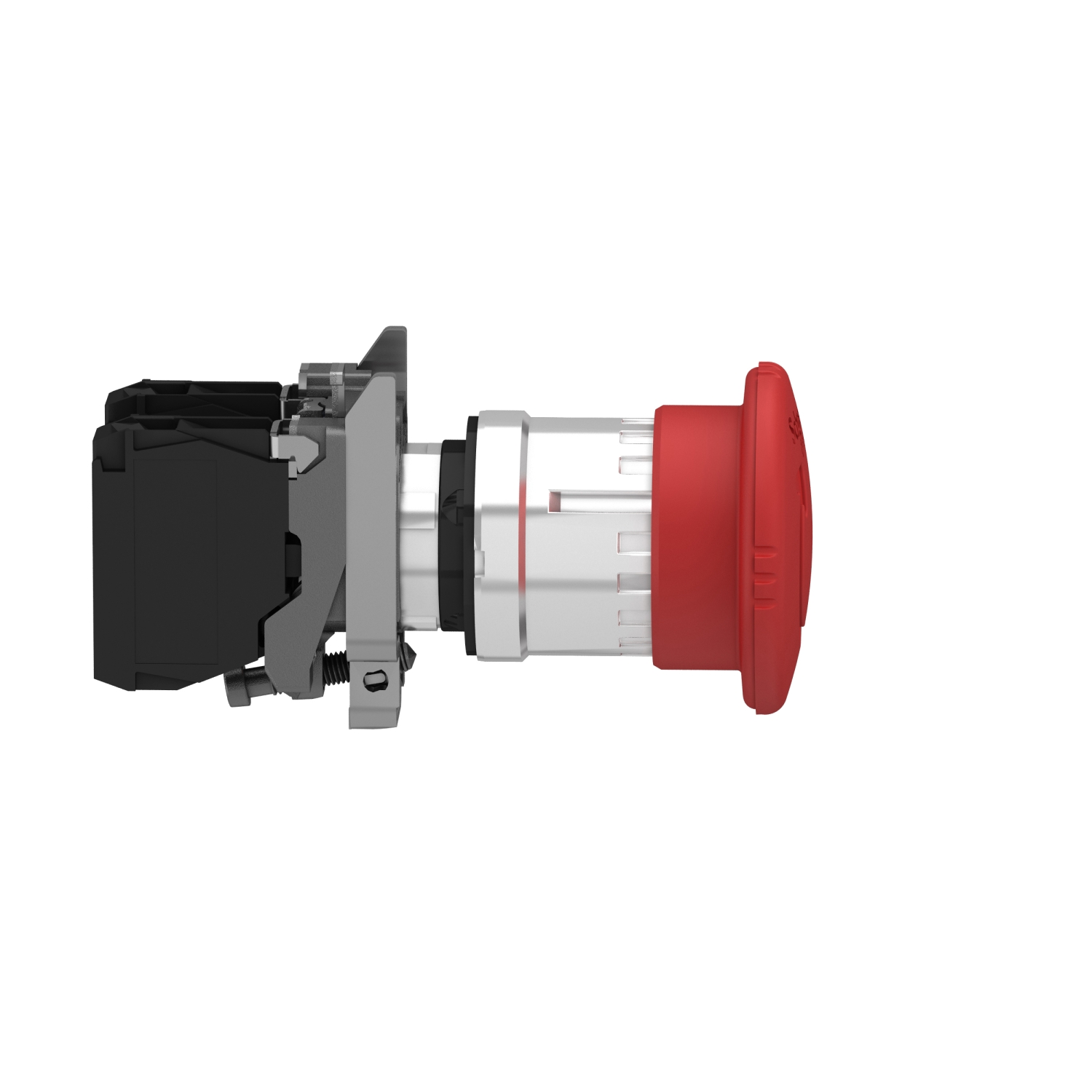

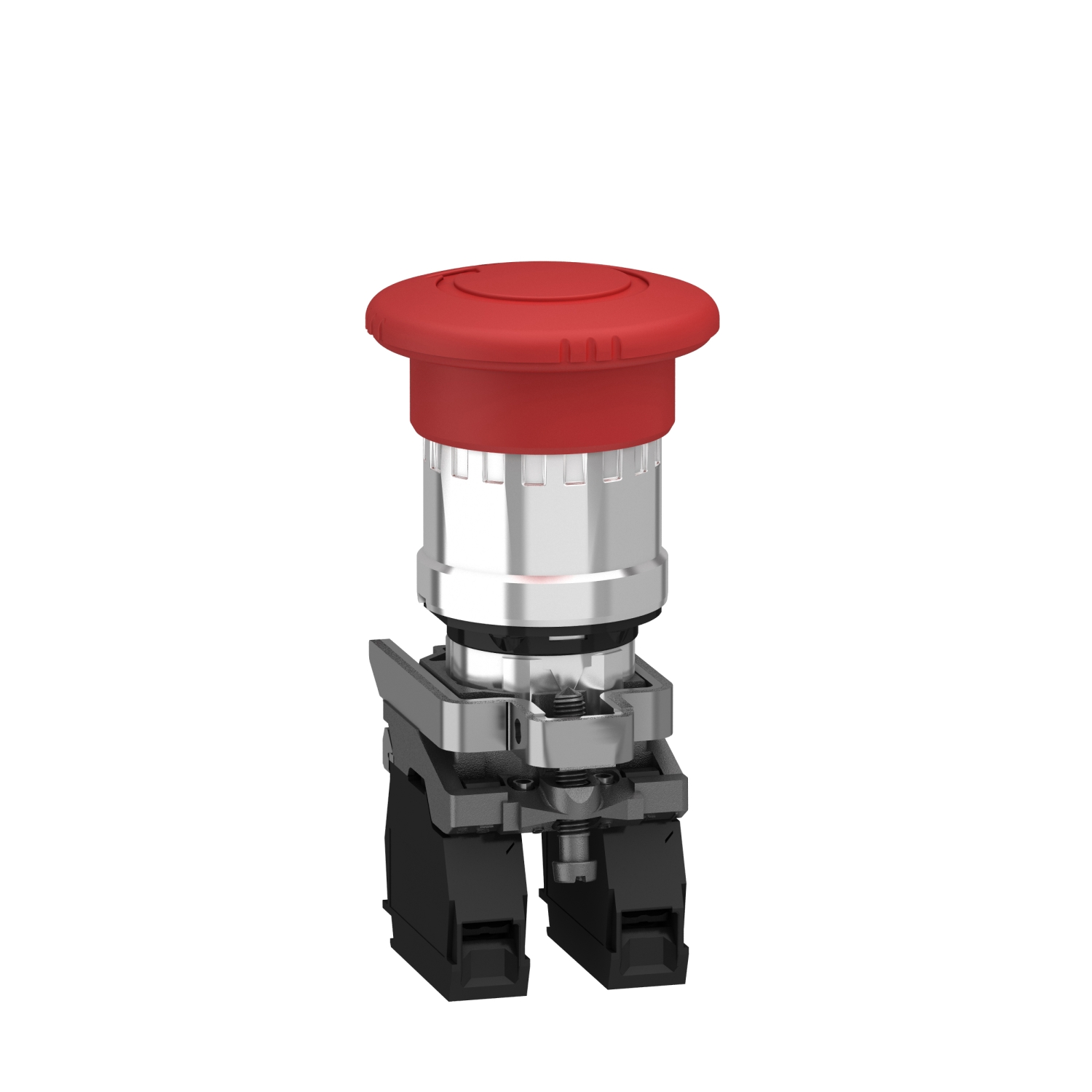

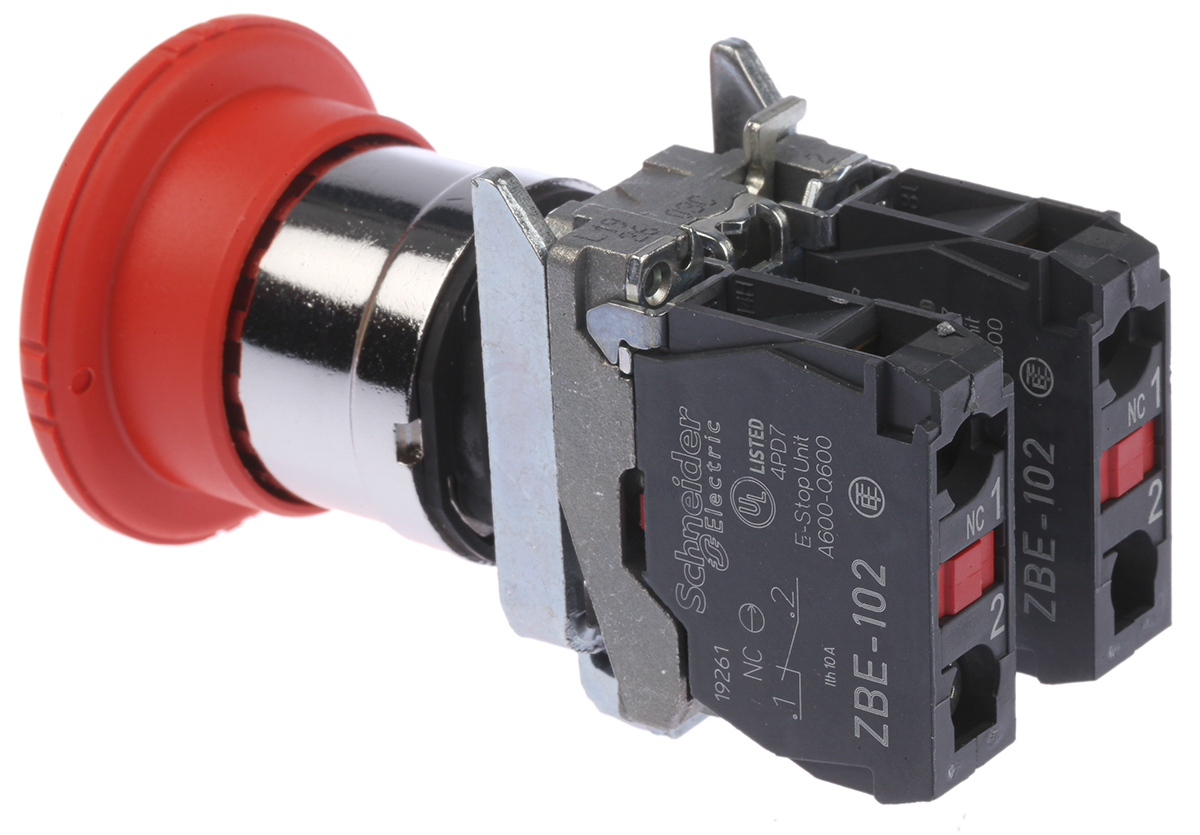

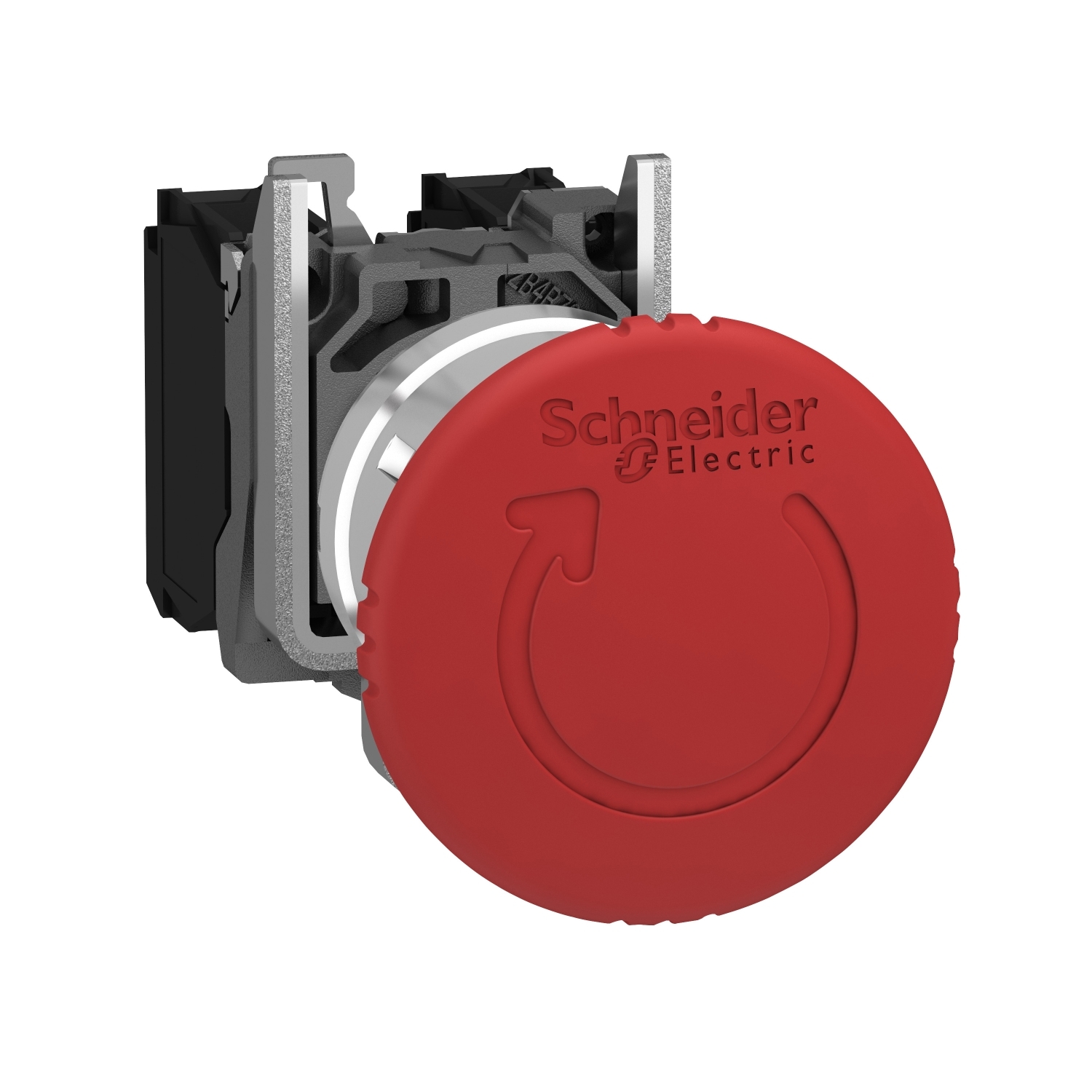

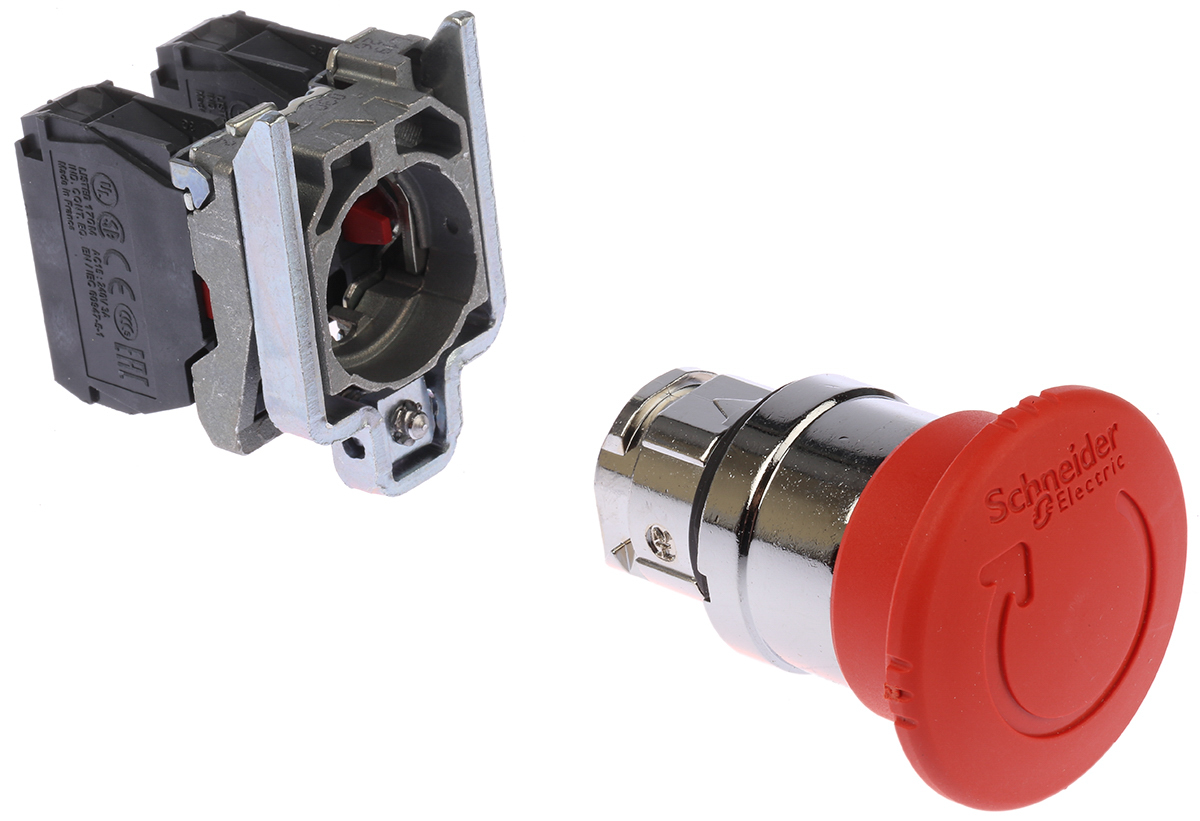

Schneider Electric Harmony XB4 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NC, IP66,

Manufacturer:
Manufacturer Part No:
XB4BS8444
Enrgtech Part No:
ET5009936
Warranty:
Manufacturer
£ 38.72
Checking for live stock
Mounting Type:
Panel Mount
Cutout Diameter:
22mm
Contact Configuration:
2NC
Push Button Actuation:
Twist Release
Illuminated:
No
Series:
Harmony XB4
IP Rating:
IP66, IP67, IP69(IP69K)
Colour:
Red
Push Button Shape:
mushroom
Voltage Rating:
600V
Supply Current:
3A
Depth:
46.5mm
Auxiliary Contacts:
2NC
Better World Product:
Yes
Width:
82.5mm
Better World Verification:
Green Premium
Push Button Material:
Metal
Pole and Throw Configuration:
DPST
Height:
40mm
Push Button Diameter:
40mm
Bezel Material:
Metal
Housing Colour:
Red
