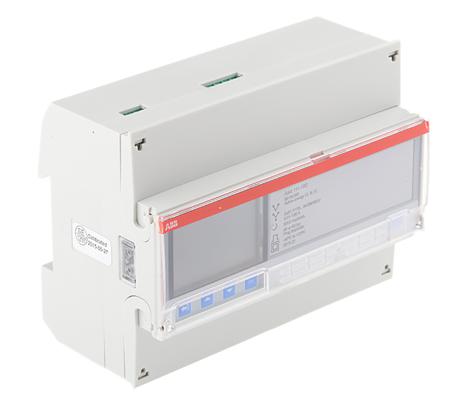

ABB Energy Meter A44 Three-Phase Steel-Level
The A series is a advanced meter product range for installations up to 80 A direct connected or transformer connected both for current and voltage (CT/VT)
The display is pixel-oriented and can display up to four quantities at the same time. Navigating the meter is easily done via the push-buttons below the display.
Data from the A series meters can be collected via pulse output or serial communication.
All meters come with an infrared port for communication with an external Serial Communication Adapter (SCA) such as the KNX adapter. A44 - Three phase meter, 6 A
7 DIN width with IR port
Transformer CTVT connected electricity meter
2- and 3-element metering
Instrument values
Alarm function Functions (Steel-level) Active energy
The display is pixel-oriented and can display up to four quantities at the same time. Navigating the meter is easily done via the push-buttons below the display.
Data from the A series meters can be collected via pulse output or serial communication.
All meters come with an infrared port for communication with an external Serial Communication Adapter (SCA) such as the KNX adapter. A44 - Three phase meter, 6 A
7 DIN width with IR port
Transformer CTVT connected electricity meter
2- and 3-element metering
Instrument values
Alarm function Functions (Steel-level) Active energy
3 Phase LCD Energy Meter, Type Transformer Connected
Manufacturer:
ABB
Manufacturer Part No:
2CMA170533R1000 A44 111-100
Enrgtech Part No:
ET21676146
Warranty:
Manufacturer
£ 247.71
Checking for live stock
Series:
A44
Cutout Height:
26.5mm
Cutout Width:
123mm
Display Type:
LCD
Number of Digits:
7
Number of Phases:
3
Pulse Output:
Yes
Depth:
65mm
Meter Accuracy:
1 %
Minimum Temperature:
-40°C
Maximum Temperature:
+70°C
Meter Type:
Transformer Connected
