The KEMET Z-PWZ power line high impedance ferrite chip beads are ideal for use in circuit designs that require high impedances and large currents to suppress radiated noise on power lines. The chip size of this ferrite beads provide waveform correction of digital signals and high frequency noise suppression in various types of digital mobile equipment that require low power consumption.
High impedance
Large withstand current
High reliability and resistance to high energy
Low stray capacitance due to wire wound structure
Two materials available to choose from
Impedance value from 32 – 2,000 Ω
Rated current range from 0.5 – 4 A
Operating temperature range from −40°C to +125°C
Large withstand current
High reliability and resistance to high energy
Low stray capacitance due to wire wound structure
Two materials available to choose from
Impedance value from 32 – 2,000 Ω
Rated current range from 0.5 – 4 A
Operating temperature range from −40°C to +125°C

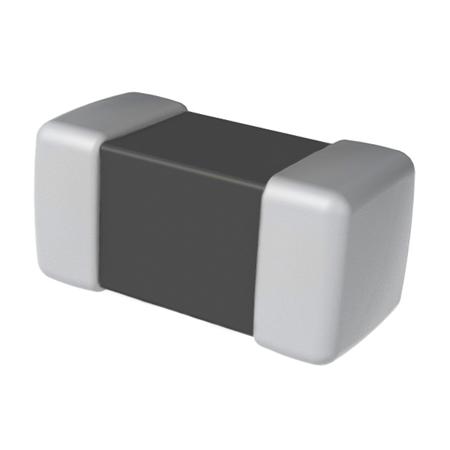

Ferrite Bead (Chip Bead), 0.079 x 0.049 x 0.033mm (Tape & Reel), 32.5Ω impedance at 25 MHz, 80Ω impedance at 100
Manufacturer:
KEMET
Manufacturer Part No:
Z0805C800BPWZT
Enrgtech Part No:
ET20189751
Warranty:
Manufacturer
£ 0.11
Checking for live stock
Package Type:
Tape & Reel
Impedance at 25 MHz:
32.5Ω
Impedance at 50 MHz:
54.5Ω
Impedance at 100 MHz:
80Ω
Impedance at 300 MHz:
113.2Ω
Impedance at 1 GHz:
121.2Ω
Current Rating:
1.2A
Type:
Chip Bead
Dimensions:
0.079 x 0.049 x 0.033mm
