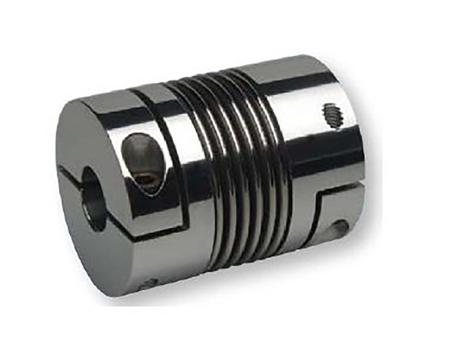

The Huco Bellows Coupling with fixed clamp shaft connection. Precision couplings with excellent kinematic properties. The 3 types offer differing combinations of stiffness, radial compensation and axial motion.
Temperature range is from -30°C to +120°C
Hubs material is aluminium alloy
Hubs material is aluminium alloy
Bellows Coupling, 66mm Outside Diameter, 22mm Bore, 79mm Length Coupler
Manufacturer:
Huco
Manufacturer Part No:
554.66.4949
Enrgtech Part No:
ET19998864
Warranty:
Manufacturer
£ 182.57
Checking for live stock
Coupling Types:
Bellows Coupling
Bore:
22mm
Outside Diameter:
66mm
Length:
79mm
Torque Rating:
60Nm
Misalignment - Angular:
1.5°
Misalignment - Parallel:
0.15mm
Misalignment - Axial:
0.6mm
