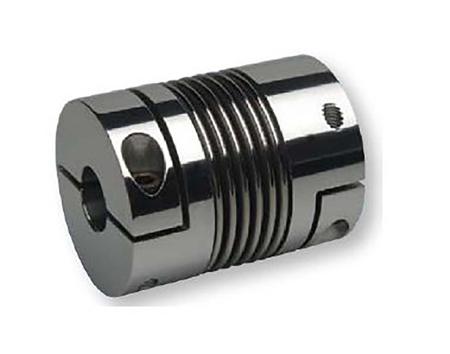

The Huco Bellows Coupling with fixed clamp shaft connection. Precision couplings with excellent kinematic properties. The 3 types offer differing combinations of stiffness, radial compensation and axial motion.
Temperature range is from -30°C to +120°C
Hubs material is aluminium alloy
Hubs material is aluminium alloy
Bellows Coupling, 82mm Outside Diameter, 25mm Bore, 102mm Length Coupler
Manufacturer:
Huco
Manufacturer Part No:
555.82.5252
Enrgtech Part No:
ET19998877
Warranty:
Manufacturer
£ 266.87
Checking for live stock
Bore:
25mm
Coupling Types:
Bellows Coupling
Outside Diameter:
82mm
Length:
102mm
Torque Rating:
150Nm
Misalignment - Angular:
2°
Misalignment - Parallel:
0.25mm
Misalignment - Axial:
0.8mm
