Spacial SM Monobloc Enclosures The Spacial SM compact metal enclosure is made up of a compact body, welded rear panel and front part forming a rigid frame with its corners welded. Four deep supports, 2 at the top and 2 at the bottom, for adjusting the equipment fixing bracket with a pitch of 25 mm Sheet steel door, painted with epoxy polyester resin in textured RAL7035 grey Reinforcement frame made up of two perforated uprights with a pitch of 25mm and two door rails (height-adjustable), which can be used for fixing cables Standard locking system with handle and 5mm double bar insert Supplied with galvanised mounting plate and 4 support brackets Cable gland plate in 2 parts IP55 according to IEC 60529 IK10 according to IEC62262 Certifications: BV, DNV, UL and cUL Steel Floor Standing Enclosures

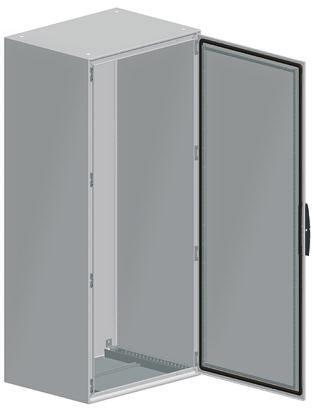

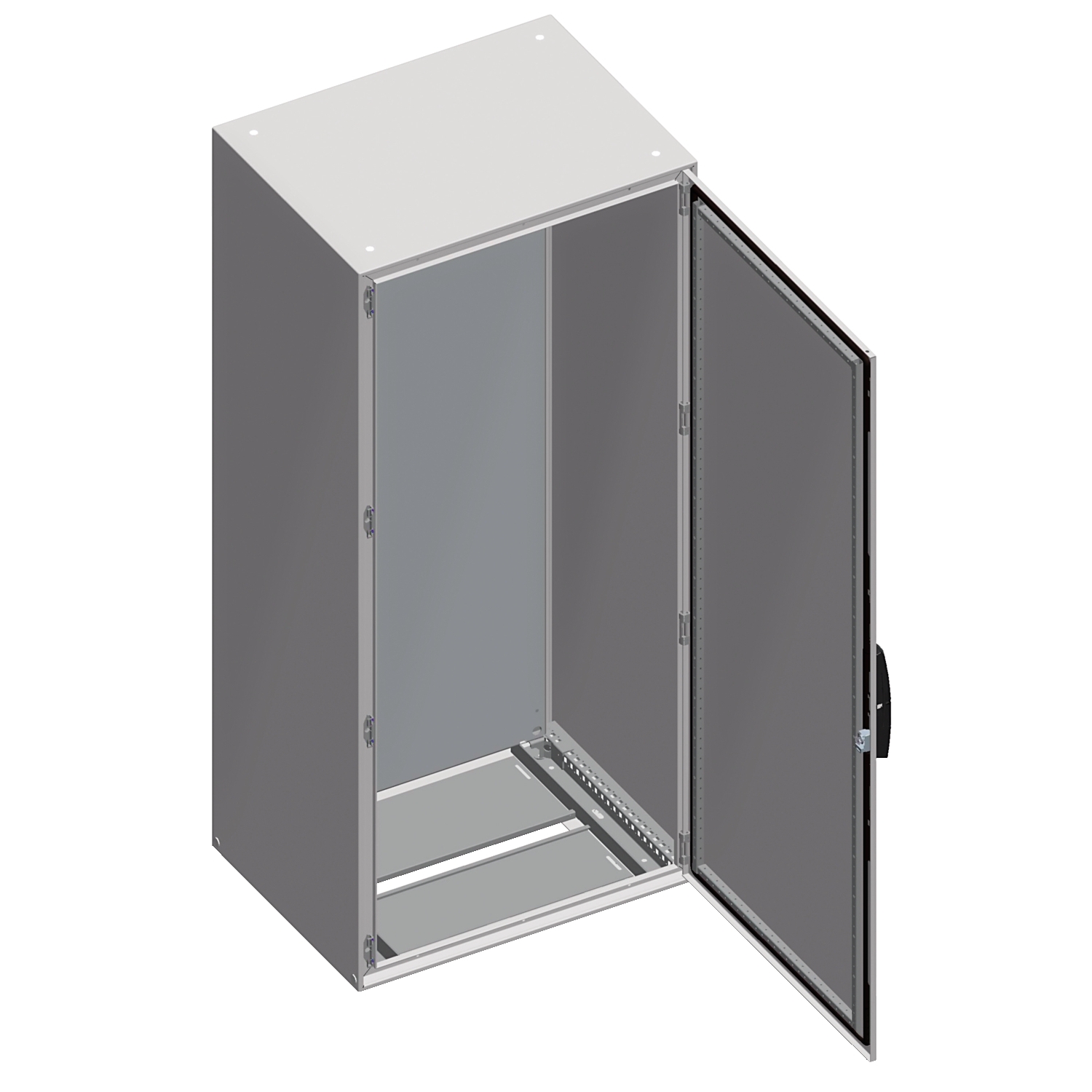

Schneider Electric NSYSM18840P Floor Standing Enclosure, Single Door, Steel, Grey, 1800 x 800 x 400mm IP55 Spacial SM

Manufacturer:
Manufacturer Part No:
NSYSM18840P
Enrgtech Part No:
ET13863287
Warranty:
Manufacturer
£ 999.53
Checking for live stock
Number of Doors:
1
Better World Product:
Yes
Standards Met:
REACH Complaint, RoHS
IP Rating:
IP55
Series:
Spacial SM
Colour:
Grey
Better World Verification:
Green Premium
External Depth:
400mm
Door Type:
Opaque
Body Material:
Steel
External Dimensions:
1800 x 800 x 400mm
Construction Type:
Welded
External Height:
1800 mm
External Width:
800 mm
Ratings:
IP55
Material:
Metal, Steel
Thickness:
-
title:
NSYSM18840P
Area (L x W):
2243in² (1.447 m²)
Container Type:
Enclosure
Material Flammability Rating:
-
Size / Dimension:
70.866" L x 31.496" W (1800.00mm x 800.00mm)
standardLeadTime:
5 Weeks
Features:
-
Weight:
-
Color:
Light Gray, Smoke Cover/Door
Series:
-
Height:
15.748" (400.00mm)
Packaging:
Bulk
Design:
Hinged Door
pdf icon
NSYSM18840P Datasheet(Technical Reference)
pdf icon
Instruction Sheet - Spacial SM(Technical Reference)
pdf icon
Green Premium ecolable(Technical Reference)
pdf icon
NSYSM18840P(Datasheets)
