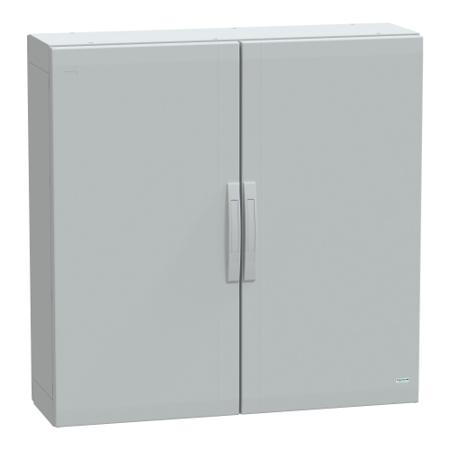

Schneider Electric NSYPLA10103G Thalassa PLA floor standing polyester enclosure. 1000x 1000x 320 mm. Sealed top and bottom part, assembled with side parts. 4 points lock, 5 mm double-bar insert. 2 doors. Right and left 120° opening. Accessible front and rear. Polyester reinforced with fibreglass. Grey RAL 7035. IP65, IK10, NEMA (1,2,12,13). 960°C fire resistance. Features & Benefits • 2-door design needs less opening clearance to suit smaller rooms
• IK10 rating shows it can take impacts equivalent to 5kg dropped from a 400mm height without suffering damage
• Secure 4-point lock protects your contents from unauthorised access
• Mounting panel is easily secured with nuts and washers Applications • Petrochemical industry
• Processing facilities
• Data centres
• Research laboratories Is this enclosure fire-resistant? Yes, the enclosure can withstand fires up to +960°C to boost workplace safety. How do I access the mounting panel? Before you can mount products, take out the centre bar by removing the top and bottom support panels. Once those are out of the way, you can install the mounting plate.
