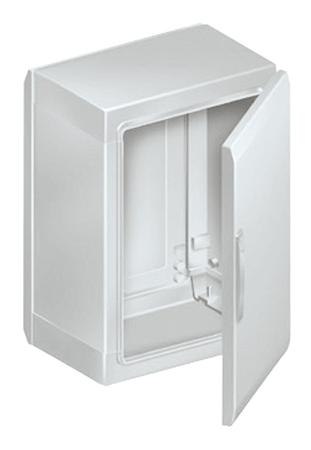

nsypla773g Floor Standing Enclosure, Single Door, PET, Grey, 750 x 750 x 320mm IP65 Thalassa PLA

Thalassa Industrial Enclosure Locking system with escutcheon and 5mm double bar insert Protection degree IP65 according to IEC 60529 IK10 resistance to external mechanical impact according to EN 50 102 Reversible door, 120° opening. Maximum permissible loading: 30kg/m 2 Temperature Resistant: -50°C to +150°C Self Extinguishing Direct fixing to the floor Complies with RoHS and REACH directives Note The alphabetical suffixes to the enclosures 'A', 'B', 'C' etc- provide for the identification of compatible chassis plates and other accessories.

For more information please check the datasheets.

Schneider Electric NSYPLA773G Floor Standing Enclosure, Single Door, PET, Grey, 750 x 750 x 320mm IP65 Thalassa PLA

Name: Floor Standing Enclosure, Single Door, PET, Grey, 750 x 750 x 320mm IP65 Thalassa PLA
Brand: Schneider Electric
SKU: ET16748333
Availability: InStock

Manufacturer:

Schneider Electric

Manufacturer Part No:

NSYPLA773G

Enrgtech Part No:

ET16748333

Warranty:

Manufacturer

£ 755.77

Checking for live stock

Number of Doors:

Enclosure Rating:

IK10, IP65, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 3X, NEMA 4/4X, NEMA 5

Standards Met:

DNV Marine, IEC 60529, IEC 62208, IEC 62262, UL 508 A, UL/cUL Listed, Veritas

IP Rating:

IP65

Series:

Thalassa PLA

Colour:

Grey

Better World Verification:

Green Premium

External Depth:

320mm

Door Type:

Opaque

Body Material:

PET

External Dimensions:

750 x 750 x 320mm

Construction Type:

Sealed

Datasheet(Technical Reference)

Instruction Sheet - NSYPLA773G(Technical Reference)

Catalogue - Universal Enclosures(Technical Reference)

Product Environmental Profile(Technical Reference)
