Width:
8.39in
Height:
3.46in
Length:
8.27in
Weight:
2kg

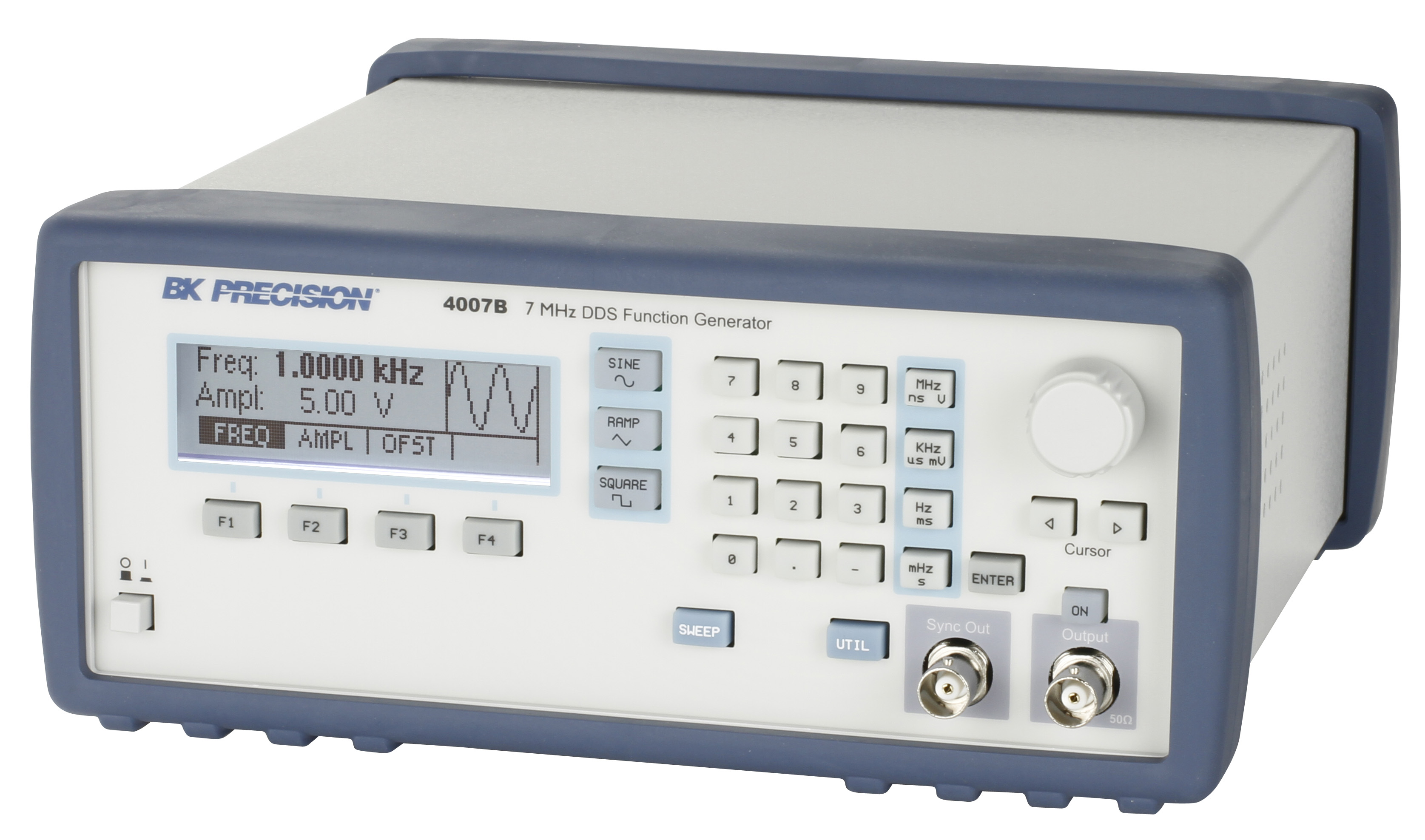

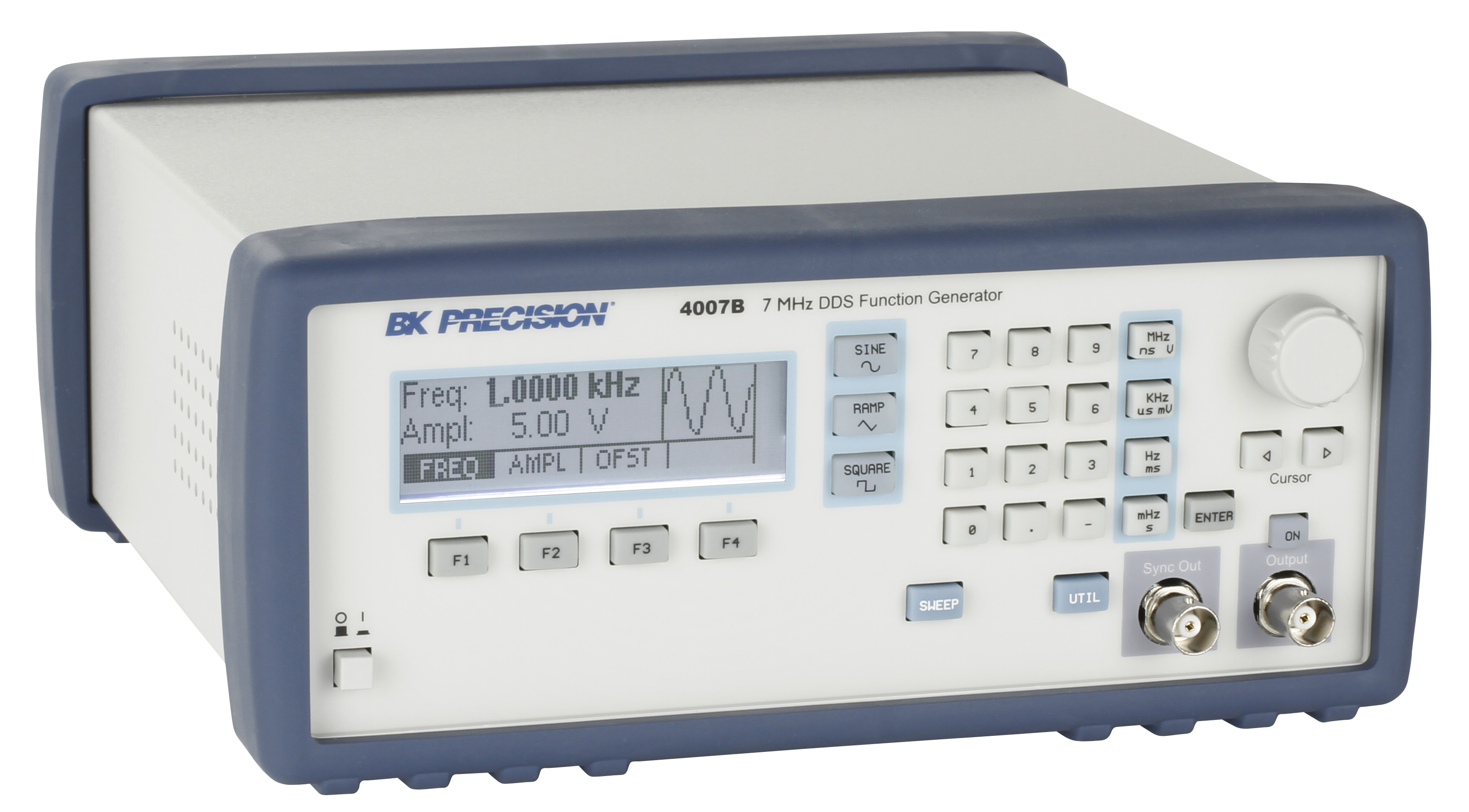

Product Type:
Function Generator
Variable Sweep:
Yes
Output Amplitude:
20 mVpp to 20 Vpp (open circuit), 10 mVpp to 10 Vpp (into 50 Ω)
Output Impedance:
50Ω
Digital Frequency:
Yes
Time Base Accuracy:
0.01 % ± 0.186 Hz
Standards/Approvals:
EN61010, EN55082, EN55011, Low Voltage 2006/95/EC, EMC 2004/108/EC
Digital Amplitude and Offset:
Yes
Internal Linear and Log Sweep:
Yes
Maximum Operating Temperature:
50°C
Minimum Operating Temperature:
0°C
Maximum Frequency Range Sinewave:
7MHz
Minimum Frequency Range Sinewave:
0.0000001MHz
Maximum Frequency Range Triangle/Saw:
1MHz
Minimum Frequency Range Triangle/Saw:
0.1Hz
Maximum Frequency Range Square Pulse/Arbitrary Waveform:
12MHz
Minimum Frequency Range Square Pulse/Arbitrary Waveform:
0.1Hz
