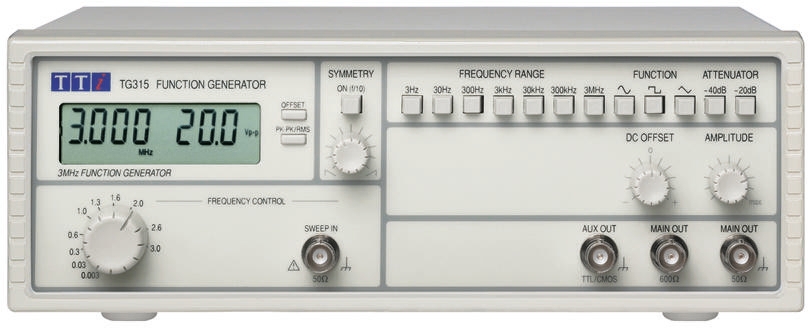

Aim-TTi TG310 & TG315 3MHz Function Generator with Dual Digital Displays
The TG315 is a low-cost 3MHz function generator which incorporates an LCD display that gives a simultaneous readout of frequency and amplitude (or dc offset). Wide frequency range is matched by very high waveform quality at all frequencies and amplitudes. The digital display provides fast update even at low frequencies. The TG310 is a simplified version of the TG315, having a calibrated frequency dial and no LCD display.
Simultaneous digital display of frequency and level
High accuracy frequency readout with fast update
2mV to 20V pk-pk output from 50Ω or 600Ω
Level display compensated for attenuator setting
1000:1 frequency change by vernier or external sweep input
Variable symmetry at constant frequency
Display annunciators including clipping indicator
High accuracy frequency readout with fast update
2mV to 20V pk-pk output from 50Ω or 600Ω
Level display compensated for attenuator setting
1000:1 frequency change by vernier or external sweep input
Variable symmetry at constant frequency
Display annunciators including clipping indicator
TG315 Function Generator, 0.03Hz Min, 3MHz Max - With RS Calibration
£ 255.60
Checking for live stock
Series:
TG300
Model Number:
TG315
Calibrated:
RSCAL
Digital Frequency:
Yes
Minimum Frequency Range Sinewave:
0.03Hz
Maximum Frequency Range Sinewave:
3MHz
Minimum Frequency Range Square Pulse and Arbitrary Waveform:
0.03 Hz
Maximum Frequency Range Square Pulse and Arbitrary Waveform:
3MHz
Maximum Frequency Range Triangle/Saw:
3MHz
Minimum Frequency Range Triangle/Saw:
0.03Hz
Digital Amplitude and Offset:
Yes
Time Base Accuracy:
±10ppm
