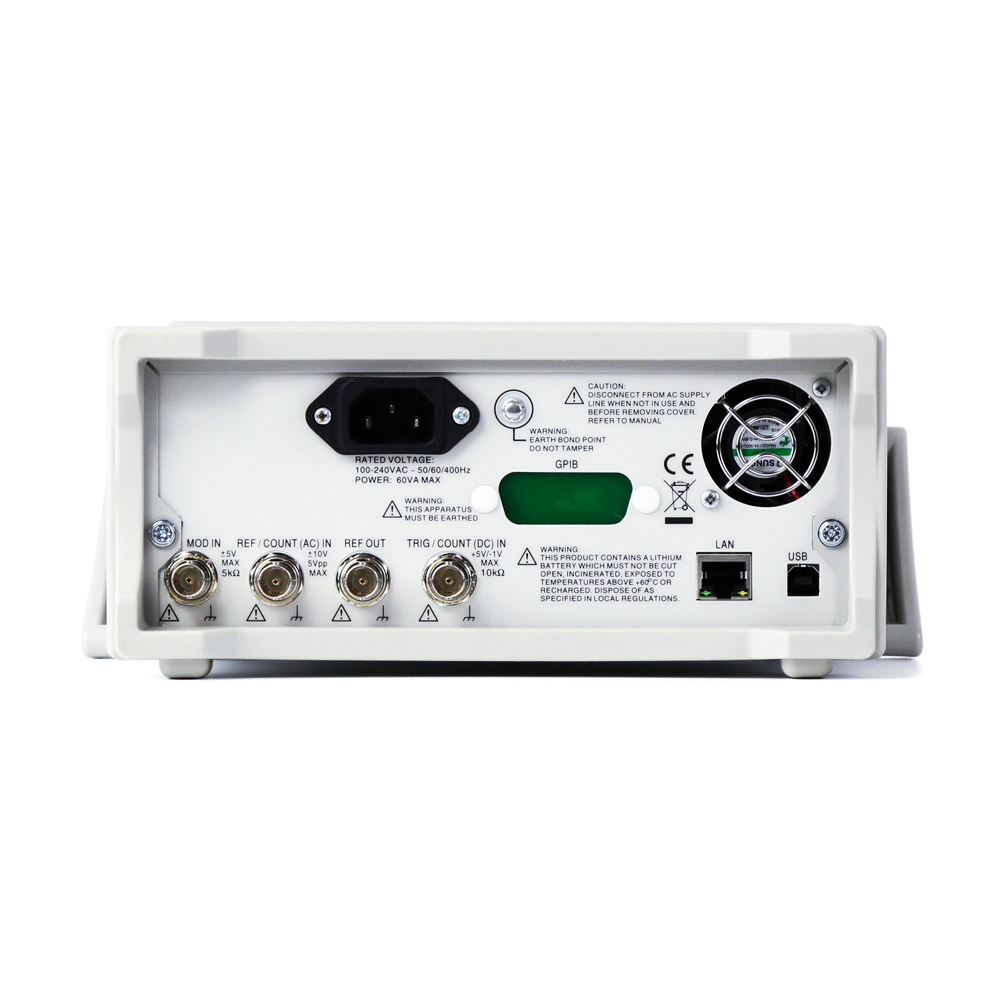

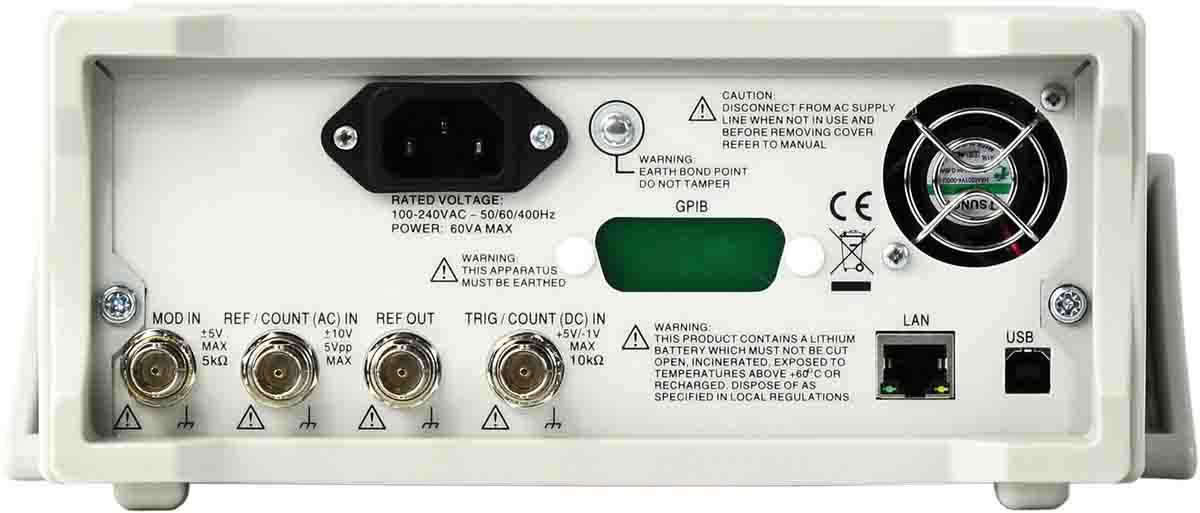

TGF4042 Function Generator, 1μHz Min, 40MHz Max, FM Modulation, Variable Sweep

Series:

TGF4000

Model Number:

TGF4042

Digital Frequency:

Yes

Number of Channels:

2

Maximum Frequency Range Sinewave:

40MHz

Minimum Frequency Range Sinewave:

1µHz

Minimum Frequency Range Square Pulse and Arbitrary Waveform:

1 μHz

Maximum Frequency Range Square Pulse and Arbitrary Waveform:

25 (Square & Pulse) MHz, 40 (Arbitrary)MHz

Maximum Frequency Range Triangle/Saw:

5MHz

Minimum Frequency Range Triangle/Saw:

1µHz

Digital Amplitude and Offset:

Yes

Internal Linear and Log Sweep:

Yes

Variable Sweep:

Yes

Internal and External Amplitude Modulation:

Yes

FM Modulation:

Yes

Time Base Accuracy:

<±1 (Initial Settling Error) ppm, <±1(Oscillator Aging Rate) ppm, <1(Temperature Range) ppm

Operating Temperature Range:

+5 → +40 °C

Dimensions:

250 x 295 x 97mm

Interface Type:

GPIB, LAN, USB

Frequency Range Square Pulse and Arbitrary Waveform:

1 μHz → 25 MHz (Square & Pulse), 40 (Arbitrary) MHz

Minimum Operating Temperature:

+5°C

Height:

97mm

Input Impedance:

10 kΩ

Width:

295mm

Length:

250mm

Output Impedance:

50Ω

Weight:

3.1kg

Maximum Operating Temperature:

+40°C

Output Amplitude:

10V Pk-Pk

TTL Output Level:

10V Pk-Pk
