FSHLDR-1 touch safe holders are designed for 10x38mm cartridge fuses, especially for use with photovoltaic equipment.

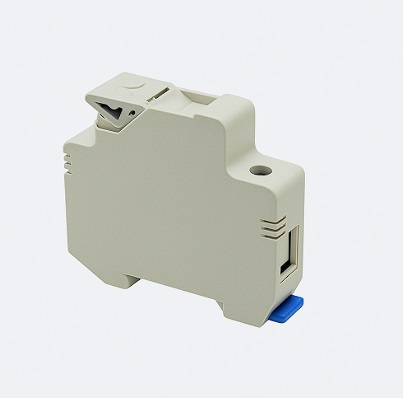

Cartridge Fuse Mount for Photovoltaic Protection
£ 95.93
Checking for live stock
Short Circuit Current Rating (SCCR):
DC30kA@1000 Vdc/20kA@1100 Vdc
Standards:
UL 4248-19,EN 60947-3
Wire Range:
18-8 AWG
Max. Torque:
3.4 Nm
Max. Power Dissipation:
6 W
Rated Impulse Withstand Voltage (Uimp):
8 kV
Shell Material:
PBT(B206)
Temperature Tolerance (RTIstr):
-40 ℃ to +90 ℃
Material Flammability:
UL 94-V0
Mounting:
DIN Rail mounting
Degree of protection:
IP20
Rated Voltage:
1000 Vdc/1100 Vdc
