RCD Fused Connection Unit for additional protection against electric shocks and fire risk. The unit will remain latched if the power supply is tripped. Provides additional protection against the dangers of electrocution
Eliminates the need for plug-in residual current circuit breakers
Protects appliances from possible fire hazard
Extra fast action – trips out within 40 milliseconds (BS7288)
Latching for continuous operation after supply interruption
Disconnects both Live and Neutral connections leaving Earth connection intact

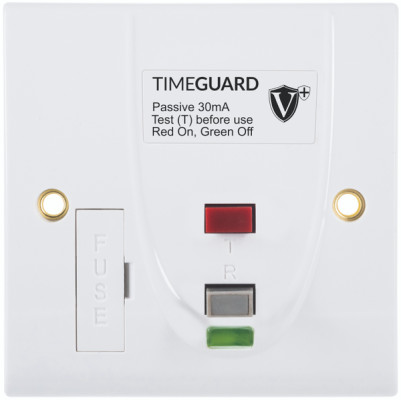

Timeguard 13A Switched Fused Spur

Manufacturer:
Manufacturer Part No:
RCD10WPVN
Enrgtech Part No:
ET23127464
Warranty:
Manufacturer
£ 55.5600
Checking for live stock
Switched:
Yes
Current Rating:
13A
Material:
Plastic
RCD Type:
Passive
Fuse Type:
BS 7288
Colour:
White
Number of Poles:
2
Length:
85mm
Depth:
85mm
Width:
49.6mm
Earth Terminal:
Yes
Colour Family:
White
Minimum Box Depth:
25mm
Fixing Standard:
BS
Trip Speed:
40ms
Trip Current:
30mA

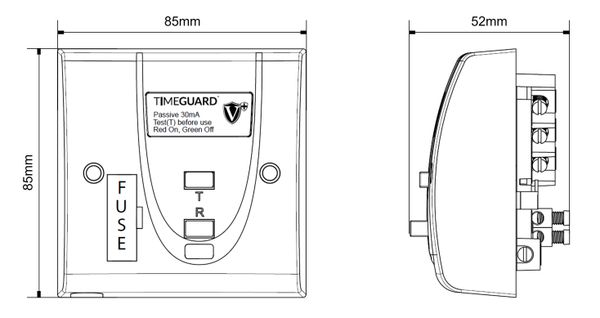

Dimensions L x W x D:
85 x 49.6 x 85mm
Voltage Rating:
230V
