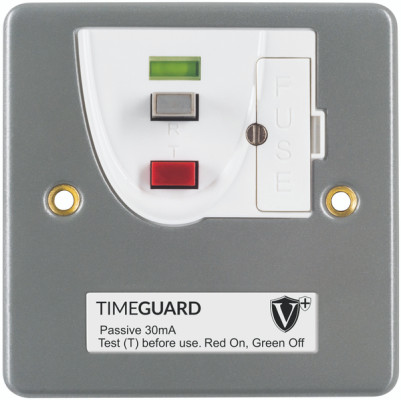

The RCD16ML RCD Fused Connection Unit gives additional protection against electric shocks and fire risk. The unit will remain latched if the power supply is tripped.
Provides additional protection against the dangers of electrocution
Eliminates the need for plug-in residual current circuit breakers
Protects appliances from possible fire hazard
Extra fast action – trips out within 40 milliseconds (BS7288)
Latching for continuous operation after supply interruption
Disconnects both Live and Neutral connections leaving Earth connection intact
Eliminates the need for plug-in residual current circuit breakers
Protects appliances from possible fire hazard
Extra fast action – trips out within 40 milliseconds (BS7288)
Latching for continuous operation after supply interruption
Disconnects both Live and Neutral connections leaving Earth connection intact

13A Fused Spur
Manufacturer:
Timeguard
Manufacturer Part No:
RCD16MLN
Enrgtech Part No:
ET23127466
Warranty:
Manufacturer
£ 58.92
Checking for live stock
Current Rating:
13A
RCD Type:
Latching
Fuse Type:
BS 7288
Number of Poles:
2
Length:
85mm
Depth:
85mm
Width:
87mm
Earth Terminal:
Yes
Voltage Rating:
230V
Minimum Box Depth:
40mm
Trip Current:
30mA
Trip Speed:
40ms
