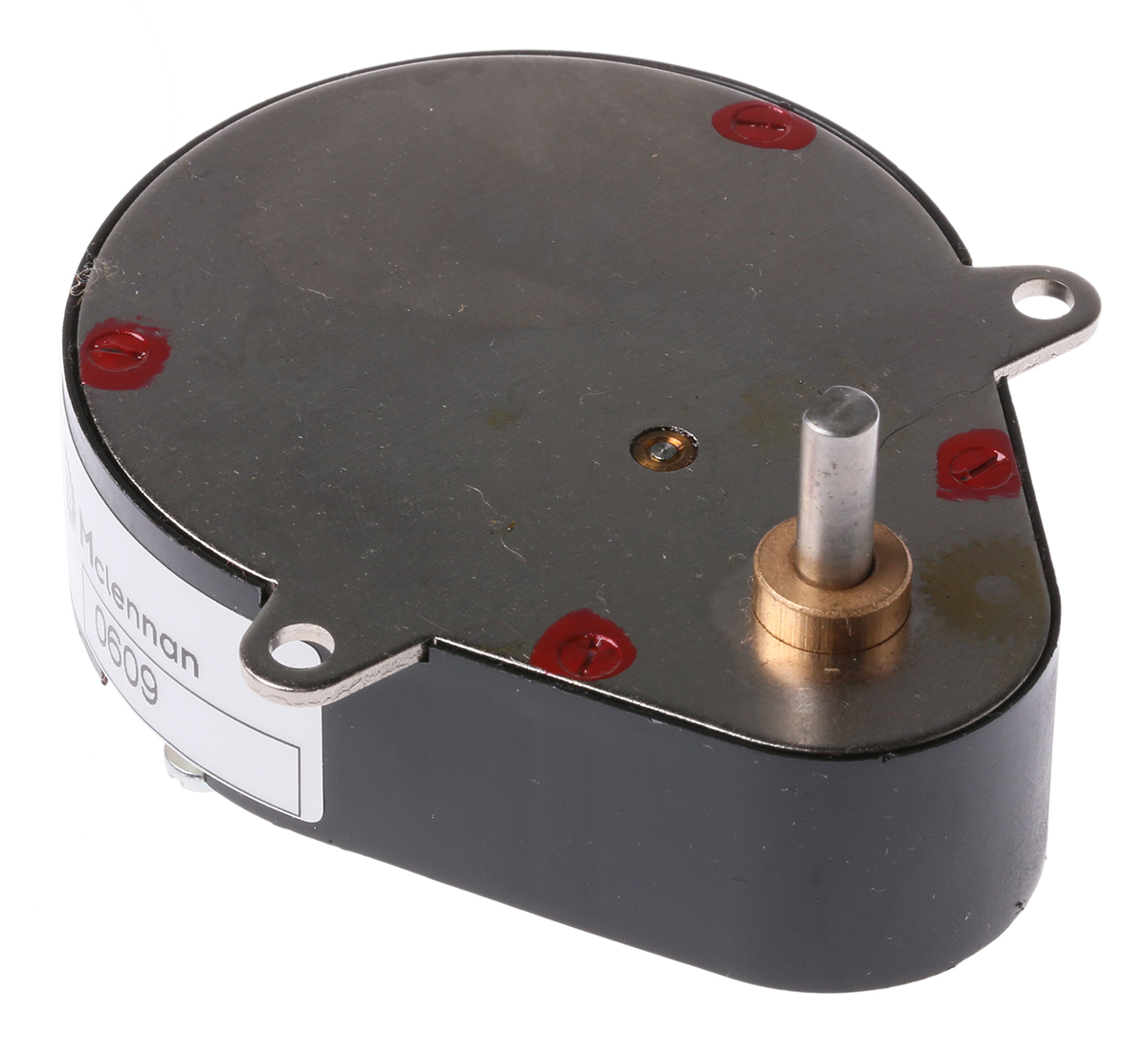

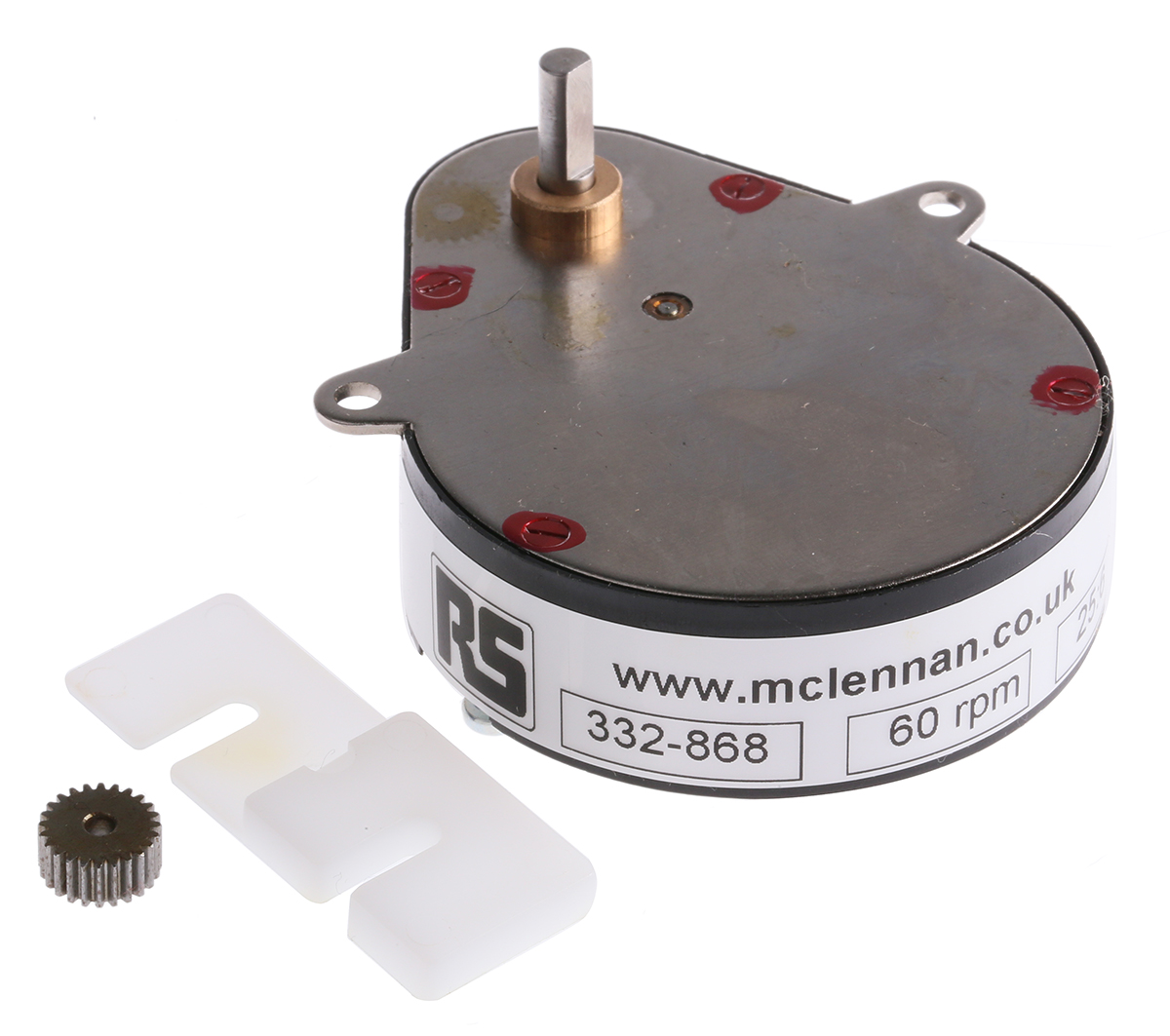

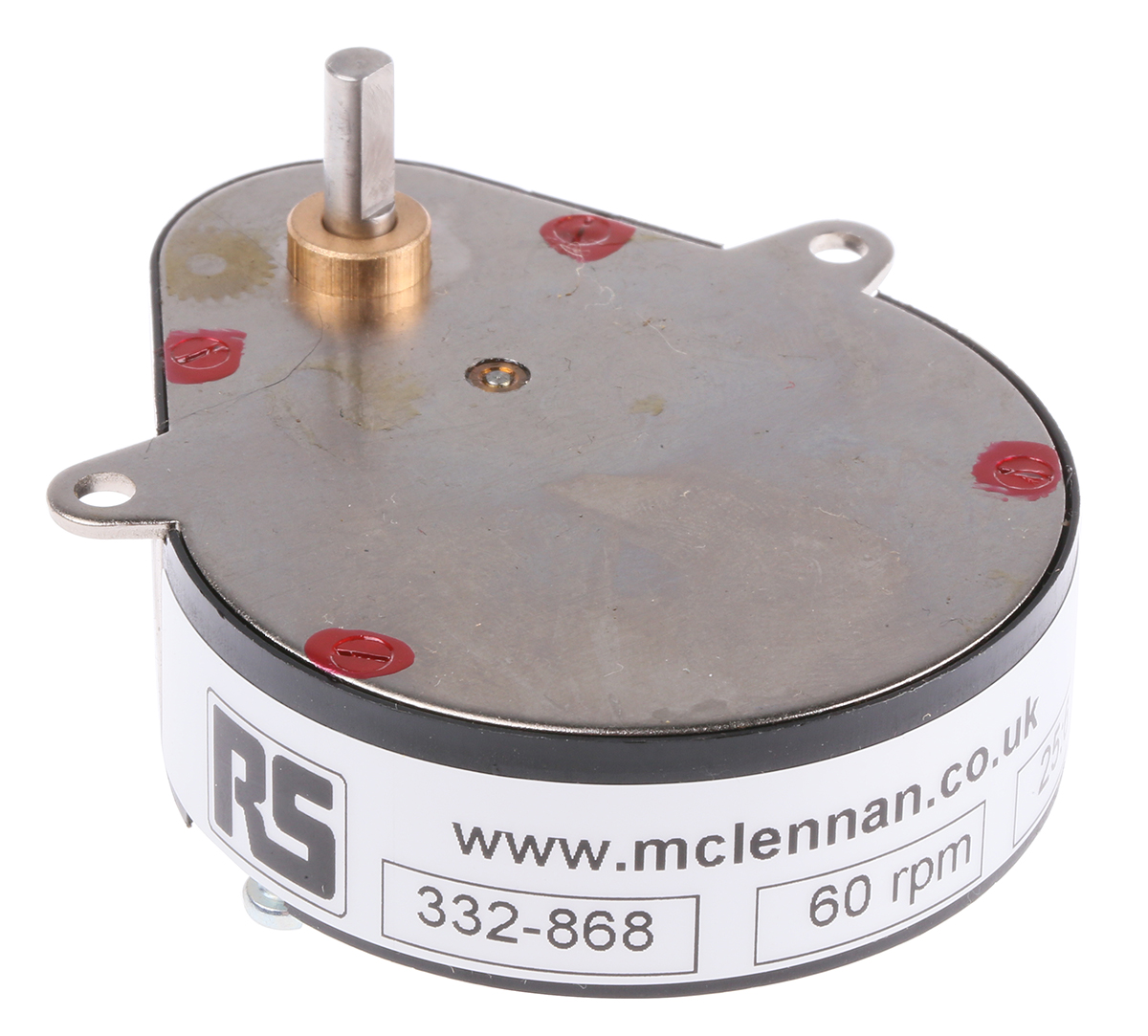

p5-g01l82 McLennan Servo Supplies P5-G01L82, Ovoid Gearbox, 25:6 Gear Ratio, 0.2 Nm Maximum Torque, 1200rpm Maximum Speed

Precision Instrument Gearboxes High quality ovoid gearboxes Precision cut metal gear system Ideal for scientific instrumentation, medical and process control equipment Supplied with fitting instructions, screws for mounting the motor plus a pinion which may be easily fitted to the motor spindle using high strength retainer stock no. 473-417 (not supplied) and the pacer tool provided.

For more information please check the datasheets.

McLennan Servo Supplies P5-G01L82, Ovoid Gearbox, 25:6 Gear Ratio, 0.2 Nm Maximum Torque, 1200rpm Maximum Speed

Name: McLennan Servo Supplies P5-G01L82, Ovoid Gearbox, 25:6 Gear Ratio, 0.2 Nm Maximum Torque, 1200rpm Maximum Speed
Brand: McLennan Servo Supplies
SKU: ET16848769
Availability: InStock

Manufacturer:

McLennan Servo Supplies

Manufacturer Part No:

P5-G01L82

Enrgtech Part No:

ET16848769

Warranty:

Manufacturer

£ 38.00 £ 26.60

Checking for live stock

Maximum Output Torque:

0.2 Nm

Shaft Diameter:

4mm

Gear Ratio:

25:6

Gearbox Type:

Ovoid

Maximum Speed:

1200rpm

Overall Depth:

16.5mm

Overall Width:

47.6mm

Synchronous motor and gearboxes(Technical Reference)

D.C. Motor Gearboxes(Technical Reference)
