Sealed Polyester Case High mechanical strength with resistance to contamination from oils, fats, aliphatic and aromatic carbohydrates, bacteria, enzymes etc. Difficult to light, will not give off toxic fumes Temperature range of -40° → 100° C Lid with stainless steel screws Tongue and groove arrangement with neoprene rubber gasket provide sealing Fixing holes outside sealed area Base with moulded threaded inserts for mounting DIN rails along the Case width External Length = (A), External Width = (B), External Height = (C) on Line Diagram Height dimension includes Lid thickness

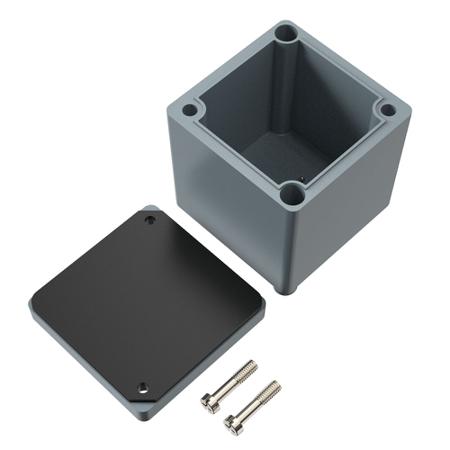

Rose , Fibreglass Watertight 02 Plastic Enclosure, IP66, 55 x 55 x 58.7mm

Manufacturer:
Manufacturer Part No:
02060606
Enrgtech Part No:
ET13968285
Warranty:
Manufacturer
£ 15.75
Checking for live stock
RAL Code:
RAL 7000
Flanged:
No
Gasket Material:
Chloroprene
Weight:
130g
IP Rating:
IP66
Shielded:
No
Series:
Polyester Standard
Colour:
Grey
Body Material:
Glass Fibre Reinforced Polyester
Transparent Door:
No
Hazardous Area Certification:
Lloyds Register, Maritime Register, UL 508
External Length:
55 mm
Range:
Glass fibre reinfored Polyeser Enclosure
Lid Colour:
Grey
IK Rating:
IK08
External Dimensions:
55 x 55 x 58.7mm
External Height:
55 mm
External Width:
55 mm
pdf icon
Datasheet - 2060606(Technical Reference)
pdf icon
Technical Drawing 02060606(Technical Reference)
