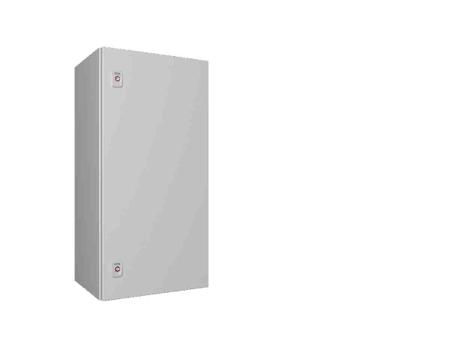

Ax, Steel Enclosure, 400 x 800 x 300mm

RAL Code:

RAL 7035

Gasket Material:

Foamed Polyurethane

Weight:

24.9kg

IP Rating:

IP66

Shielded:

No

Series:

AX

Colour:

RAL7035

Body Material:

Sheet Steel

Transparent Door:

No

External Length:

800 mm

Range:

Ax Compact Enclosure

Lid Colour:

Grey

IK Rating:

IK10

External Dimensions:

400 x 800 x 300mm

External Height:

800 mm

External Width:

400 mm

Ratings:

IP66, NEMA 1,3R,4,12

Material:

Metal, Steel

RoHS Status:

ROHS3 Compliant

Thickness:

0.059" (1.50mm)

title:

1037000

Area (L x W):

496in² (3200cm²)

REACH Status:

REACH info available upon request

Container Type:

Enclosure

Material Flammability Rating:

-

Size / Dimension:

31.496" L x 15.748" W (800.00mm x 400.00mm)

standardLeadTime:

5 Weeks

Shipping Info:

-

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Features:

-

Weight:

-

Color:

Light Gray

Series:

AX

Height:

11.811" (300.00mm)

Packaging:

Box

Design:

Hinged Door
