The Rittal AX compact enclosure is a basic enclosure. This enclosure can be used for many purposes like to house various electronic, electrical and mechanical components, equipment, and devices. An extra protection is provided to the device or equipment or while the equipment is in operation and prevent the ingress of environmental contaminants such as dust and water. The AX compact enclosure is made of sheet steel and the mounting plate is zinc-plated. It offers flexibility and safety in assembly and interior installation. Maximum data quality and consistency in engineering offered IP 66 protection NEMA 4 protection category

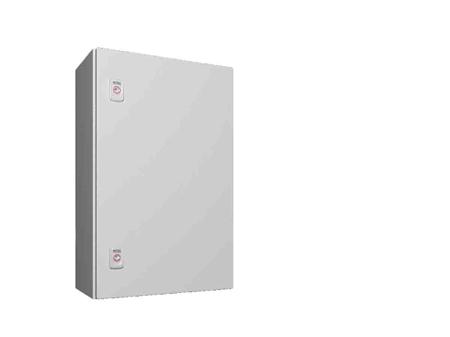

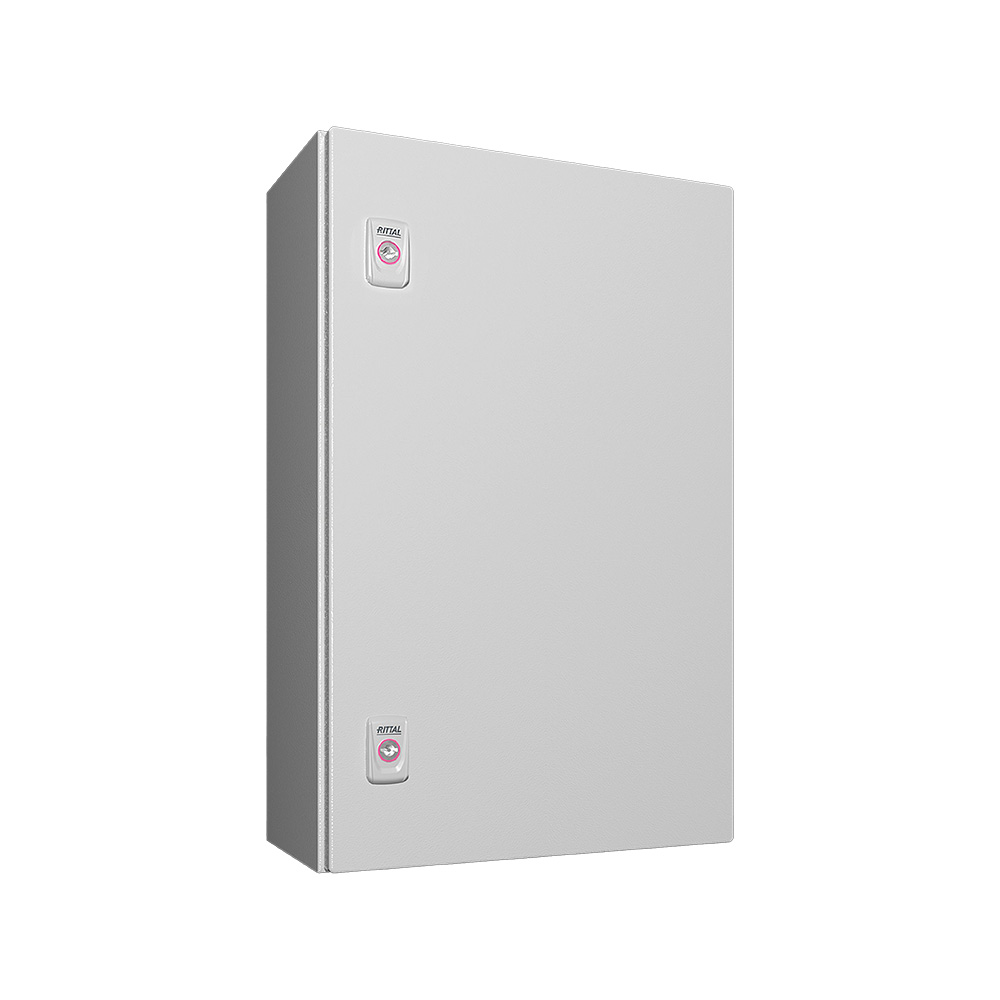

Rittal Ax, Steel Enclosure, 380 x 600 x 210mm

Manufacturer:
Manufacturer Part No:
1038000
Enrgtech Part No:
ET20008367
Warranty:
Manufacturer
£ 171.95
Checking for live stock
RAL Code:
RAL 7035
Weight:
14.4kg
IP Rating:
IP66
Shielded:
No
Series:
AX
Colour:
RAL7035
Body Material:
Sheet Steel
Transparent Door:
No
Range:
Ax Compact Enclosure
External Dimensions:
380 x 600 x 210mm
IK Rating:
IK10
External Height:
600 mm
External Width:
380 mm
Ratings:
IP66, NEMA 1,3R,4,12
Material:
Steel
RoHS Status:
ROHS3 Compliant
Thickness:
0.049" (1.25mm)
Area (L x W):
353in² (2277cm²)
REACH Status:
REACH info available upon request
Container Type:
Enclosure
Material Flammability Rating:
-
Size / Dimension:
23.622" L x 14.961" W (600.00mm x 380.00mm)
standardLeadTime:
5 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
-
Color:
Light Gray
Series:
AX
Height:
8.268" (210.00mm)
Packaging:
Box
Design:
Hinged Door
pdf icon
Instruction Sheet - Enclosure Series(Technical Reference)
pdf icon
Datasheet - 1038000(Technical Reference)
pdf icon
Catalogue - Compact Enclosures AX(Technical Reference)
pdf icon
Load Brochure - Compact Enclosures AX(Technical Reference)
