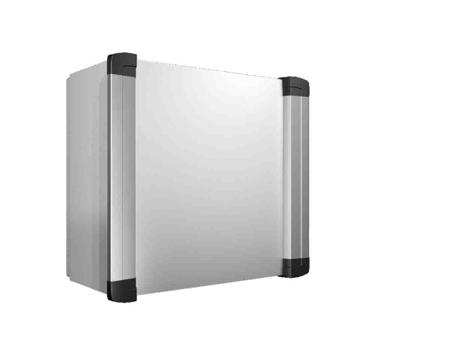

The Rittal AX command panel is an operating housing with handle strips which is based on AX. It is made of sheet steel with a Ø 130 mm support arm cut-out to fit support arm system CP 60/120/180. The AX command panel has an easily removable aluminium front panel for machining. The service access is either from the front or the rear.
Protection category IP 55
Naturally anodised front panel and cover caps
Type 1, 12 IP protection category and rating to UL 508A
Ax, Steel Enclosure, 380 x 380 x 210mm
£ 304.15
Checking for live stock
RAL Code:
RAL 7035
IP Rating:
IP55
Shielded:
No
Series:
AX
Body Material:
Sheet Steel
External Length:
380 mm
Range:
Ax Command Panel
External Dimensions:
380 x 380 x 210mm
External Height:
380 mm
External Width:
380 mm
IK Rating:
IK08
