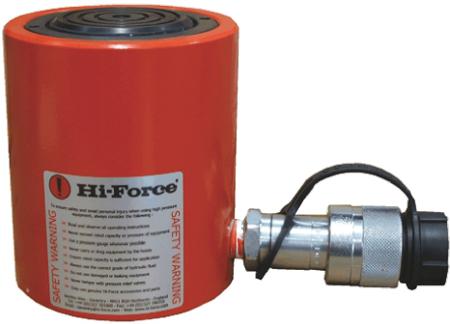

Hi-Force Single, Portable Low Height Hydraulic Cylinder, HLS302, 32t, 60mm stroke

Hi-Force Single, Portable Low Height Hydraulic Cylinder, HLS302, 32t, 60mm stroke

Manufacturer:

Manufacturer Part No:

HLS302

Enrgtech Part No:

ET16898875

Warranty:

Manufacturer

£ 521.31

Checking for live stock

Stroke:

60mm

Capacity:

32t

Closed Height:

119mm

Single/Double Acting:

Single

Manufacturer Series:

HLS

Extended Height:

179mm

Cylinder Effective Area:

45.6cm²

Oil Capacity:

274cm³

Outside Diameter:

102mm

Maximum Operating Pressure:

10000 psi

Weight:

7kg

0900766b80f99559.pdf(datasheets)
