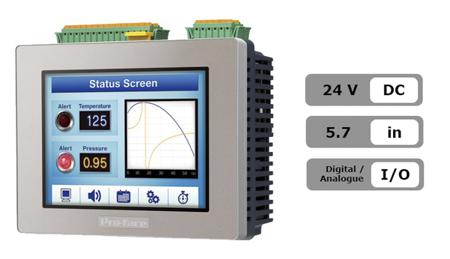

Pro-face Touch-Screen HMI Display The Pro-face LT4000M series 5.7inch hybrid touch screen HMI display is an innovative device with built-in PLC functions display. The combination of HMI and PLC saves the panel space, wiring work and programming time. A 22mm modular mounting technique and separation cables allow easy detection of the LT4000M on a panel. It provides LED-backlit, TFT colour LCD type with 65,536 colours. This display is compact in size and all-in-one unit with easy-to-use touch screen display.
GP-Pro EX
Self-guiding development
Configure the system and communication
Search/sort alarm sampling history
Easy change recipe function
Project comparison tools
GP-Pro EX is the development software for all of the Pro-face series. The software is easy to use and takes users through the development process, one step at a time. The GP-Pro Ex software comes with a wide range of application development tools, expanded diagnostic features and simulation capabilities. Features and Benefits Multiple mounting options
Programmed with GP-Pro EX screen development software
USB interfaces for connection to BCR scanners, printers and memory devices
Supports serial or Ethernet protocols
Fast refresh and communication with 64-bit RISC CPU
Resolution is 320x240pixels (QVGA)
Active display area dimension is 115.2mm x 86.4mm
Port type: CAN-CiA D-sub9, Ethernet, RS422C/RS485, USB 2.0 (Mini-B), USB 2.0 (Type A)
Power consumption is up to13W or less
On-board memory is 16MB Applications Automation
Control panels
Manufacturing industry Certifications IP65F rated
ABS
CE certified
Class NK certified
DNV certified
EAC certified
RINA certified
UL approved
cUL approved
