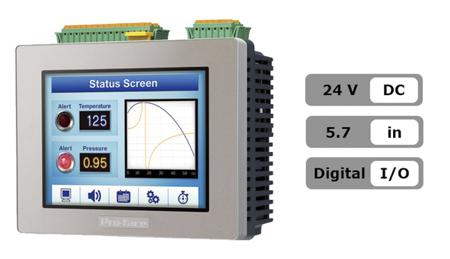

Pro-face Touch-Screen HMI Displays The Pro-face LT4000M series hybrid touch screen HMI has a built-in 5.7inch TFT LCD PLC function display. The combination of HMI plus PLC saves panel space, wiring work and programming time. It is possible to locate LT4000M on a panel with an easy 22mm modular mounting and separation cables. This display also provides LED-backlit TFT colour LCD type with 65,536 colours. It is compact in size and all-in-one unit with easy-to-use touch screen display.
GP-Pro EX
Self-guiding development
Configure the system and communication
Search/sort alarm sampling history
Easy change recipe function
Project comparison tools
GP-Pro EX is the development software for all the Pro-face series. This software is easy to use and takes users through the development process one step at a time. The GP-Pro Ex software comes with a wide range of application development tools, expanded diagnostic features and simulation capabilities. Features and Benefits Multiple mounting options
Programmed with GP-Pro EX screen development software
USB interfaces for connection to BCR scanners, printers and memory devices
Supports Serial or Ethernet protocols
Fast refresh and communication with 64-bit RISC CPU
Resolution is 320x240 (QVGA)
Active display area of 115.2mm x 86.4mm
Port types available CAN-CiA D-sub9, Ethernet, RS422C/RS485, USB 2.0 (Mini-B) and USB 2.0 (Type A)
Power consumption is 13W or less
Backlight White LED Certifications IP65F rated
ABS
CE certified
Class NK certified
DNV certified
EAC certified
RINA certified
UL listed
cUL listed
