Low Smoke Halogen Free Single Core Cable - H05Z-K A flexible low smoke halogen free single core cable for internal wiring Intended for installation within conduits and trunking, as well as internal wiring within appliances and fittings Can be used in all areas where in an event of fire a protection of people and equipment is paramount Flame retardant in accordance to IEC 60332-2-2 Smoke density in accordance to IEC 61034 Halogen free in accordance to IEC 60754-1 Working voltage 300/500V Test Voltage 2000Vac Temperature range -15°C → +90°C

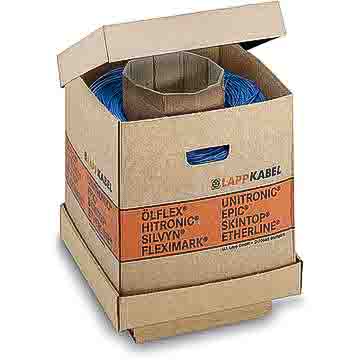

Lapp , Blue, 100m Equipment Wire, 1 mm² CSA , 500 V 17 AWG

Manufacturer:
Manufacturer Part No:
4725023
Enrgtech Part No:
ET14052242
Warranty:
Manufacturer
£ 46.05
Checking for live stock
American Wire Gauge:
17 AWG
Standards Met:
CE
Cable Shape:
Single Core
Conductor Material:
Copper
Series:
ÖLFLEX® H05Z-K 90°
Wire Style:
2491B
Fire Behaviour:
Flame Retardant
European Harmonised Code:
H05Z-K
Harmonised Code:
H05Z-K
Sheath Colour:
Blue
Length:
100m
Cross Sectional Area:
1 mm²
Minimum Operating Temperature:
-5°C
Voltage Rating:
500 V
CPR Certification:
Eca
Maximum Operating Temperature:
+90°C
Outer Diameter:
2.9mm
pdf icon
Datasheet(Technical Reference)
pdf icon
T11 Conductor Resistances and Conductor Stranding (metric)(Technical Reference)
pdf icon
Cable Selection Guide(Technical Reference)
