KY30 type cable wires - 250 V
KY30 multi-strand cable wires are essentially designed for internal wiring of electronic equipment.
Features and Benefits
• Low shrinkage upon contact with a soldering iron
• Stranded annealed tinned copper wires
• Flexible cable
• RoHS
• Stranded annealed tinned copper wires
• Flexible cable
• RoHS

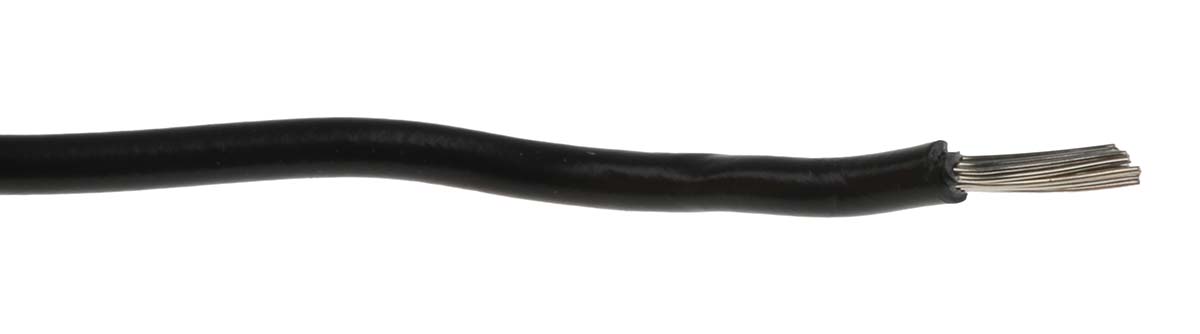

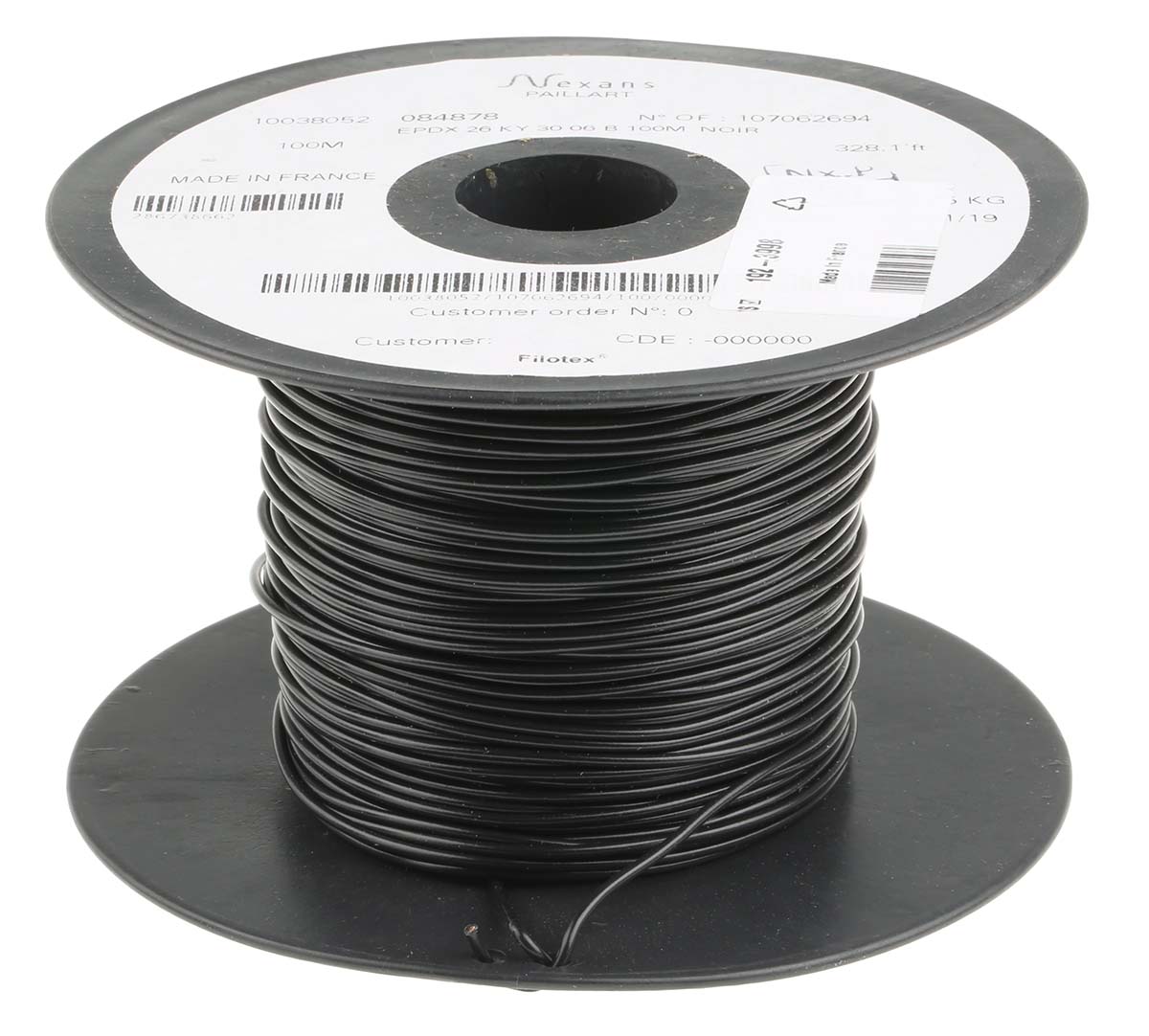

KY30 Series Black 0.52 mm² Hook Up Wire, 20 AWG, 19/0.2 mm, 100m, PVC Insulation, 10038052
Manufacturer:
Nexans
Manufacturer Part No:
10038052
Enrgtech Part No:
ET16909465
Warranty:
Manufacturer
£ 47.24
Checking for live stock
Cross Sectional Area:
0.52 mm²
Sheath Colour:
Black
Cable Shape:
Single Core
American Wire Gauge:
20 AWG
Core Strands:
19/0.2 mm
Length:
100m
European Harmonised Code:
H07Z-R
Insulation Material:
PVC
Outer Diameter:
1.9mm
Voltage Rating:
250 V
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+105°C
