Coupling Body Panel Mount Hose Barb CPC Chrome Plated Brass Couplings Rugged metallic material excellent for higher pressures, commonly used in instrumentation, water lines, ink transfer, air and vacuum line applications. Options are 1/8in. and 1/4in. nominal flow coupling bodies and inserts Not interchangeable between sizes Coupling halves connected by simply pushing together, an audible click indicates secure connection Pushbutton thumb latch for one hand disconnect Shut off option has built-in valve which will automatically cut off the supply when disconnected Straight through option gives an open flow path with no valve Shut off & straight through options of the same size can be connected together Pressure Vacuum to 17.03 bar (250psi) Operating Temperature -40°C to +82°C continuous Materials Main Components Chrome-plated Brass Thumb Latch Stainless Steel Valves Acetal Valve Springs 316 Stainless Steel External Springs & Pin Stainless Steel O-Ring Nitrile Rubber

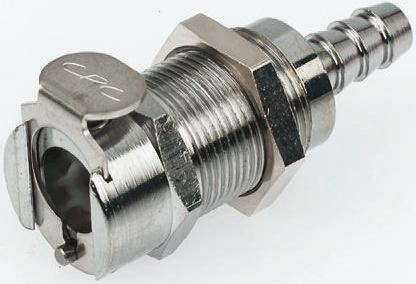

Colder Products LCD16004, Straight Male Hose Coupling Coupling Body - Valved, Panel Mount, Brass

Manufacturer:
Manufacturer Part No:
LCD16004
Enrgtech Part No:
ET16819636
Warranty:
Manufacturer
£ 23.75
Checking for live stock
Coupling Connector Direction:
Straight
Valved:
Yes
Hose Inner Diameter:
1/4in
Maximum Working Pressure:
17.3 bar
Hose Connector Type:
Hose Tail Coupling
Body Material:
Brass
pdf icon
LC Series Couplers(Technical Reference)
pdf icon
LC Series Data Sheet(Technical Reference)
