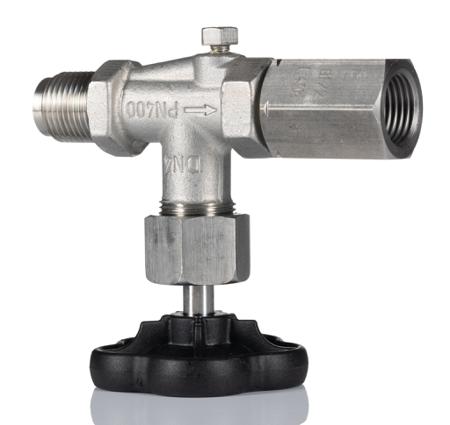

The Wika version of the pressure gauge valve is supplied with LH/ RH union, and Form B version with shaft for the mounting bracket, with nipple and union nut. Shut-off valves with a test connection are intended for the simultaneous connection of operating pressure measuring instruments and test connection pressure gauges to the pressure pipeline. With pressure gauge valves per DIN 16271, the test pivot is sealed by a lens-type sealing ring and a screw cap placed on top. Shut-off valve with test connection per DIN 16271 (with vent screw)
Nominal pressures to 400 bar
