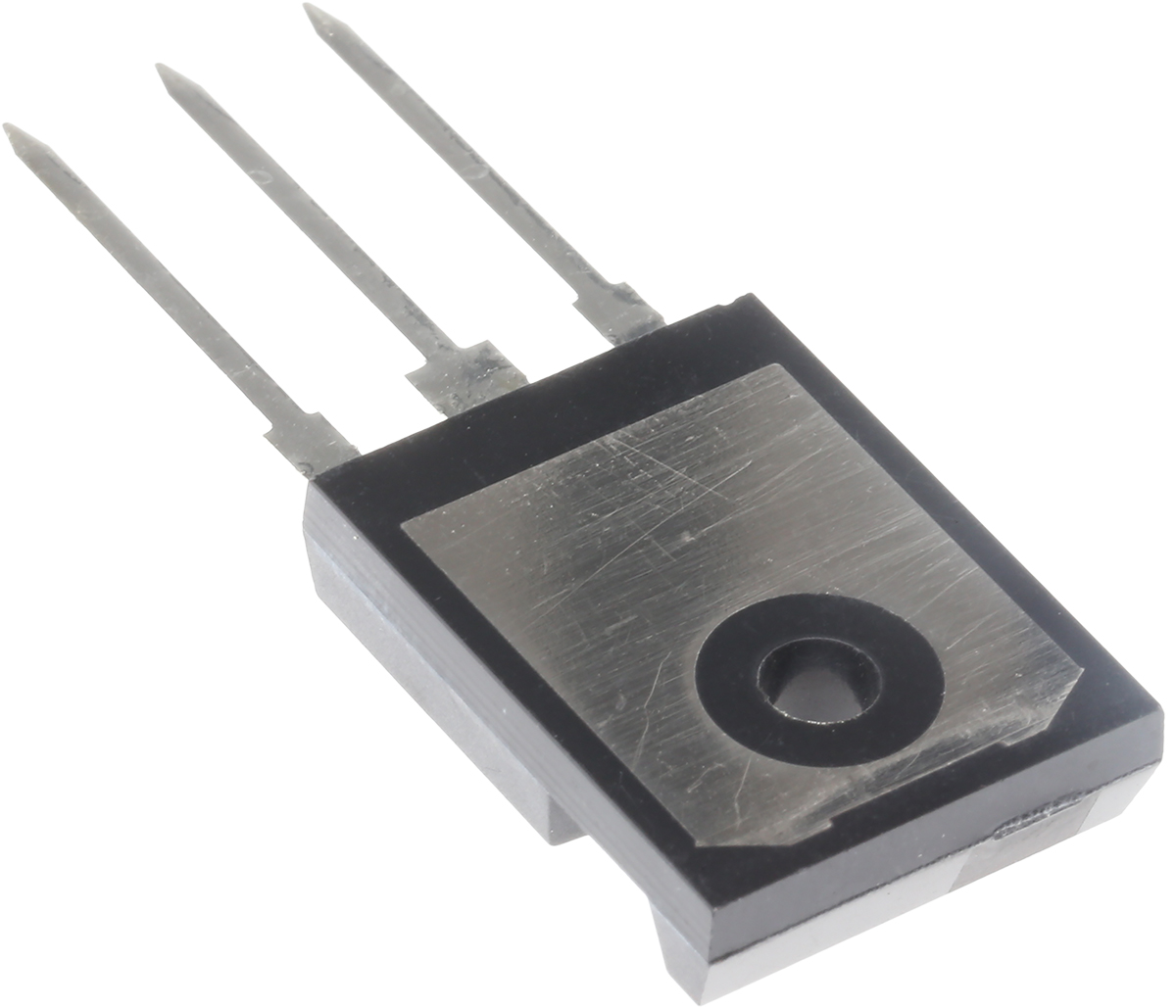

IXGH48N60B3 IGBT, 280 A 600 V, 3-Pin TO-247, Through Hole

Maximum Continuous Collector Current:

280 A

Maximum Collector Emitter Voltage:

600 V

Maximum Gate Emitter Voltage:

±20V

Maximum Power Dissipation:

300 W

Package Type:

TO-247

Mounting Type:

Through Hole

Channel Type:

N

Pin Count:

3

Switching Speed:

40kHz

Transistor Configuration:

Single

Dimensions:

16.26 x 5.3 x 21.46mm

Maximum Operating Temperature:

+150 °C

Minimum Operating Temperature:

-55 °C
