SACC M12 S-Coded circular connector - Phoenix Contact These SACC-M12FSS connectors from Phoenix contact are s-coded power connectors. They boast Phoenix's amazing build quality with better materials and a IP67 rating but also an easy to connect screw connection. The knurl is made from a zinc die-cast with a polyamide body for use in all applications. These power connectors make safe and convenient use in the field, while being flexible for either a temporary or permanent installation. Not to mention, the SACC range is also a high performing range featuring AC connectors for up to 12 A and 630 V AC.

S-coding in the device will prevent you from mating your cable the wrong way, helping you with an effortless install. Features and benefits:

  • Easy use in the field, thanks to its high degree of protection when mated (IP67)

  • S-coded for solid mating. Also prevents incorrect connection

  • Category III surge protection

  • External cable capacity: 8mm up to 10mm
Applications: The SACC M12 connectors can be used in, but not limited to:

Reliably transmit power
PROFINET
PROFIBUS
Automation What is an M12 connector? M12 connectors are a type of industrial circular connectors. The number 12 stands for the locking thread typically and they're typically used in automation, actuators, sensors and industrial ethernet. M12 connectors can come in multiple different coding and positions. The SACC series are straight connectors, with an s-coding and screw connection.

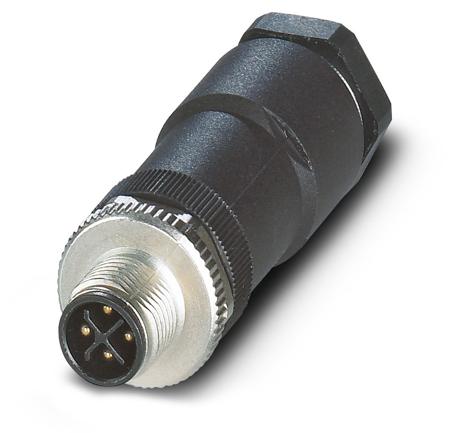

Phoenix Contact Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67, SACC Series

Manufacturer:
Manufacturer Part No:
1404641
Enrgtech Part No:
ET10292329
Warranty:
Manufacturer
£ 27.1000
Checking for live stock
Number of Contacts:
4
Mounting Type:
Cable Mount
Connector Size:
M12
Plug/Socket:
Plug
Contact Gender:
Male
Termination Method:
Screw
IP Rating:
IP67
Current Rating:
12.0A
Body Orientation:
Straight
Series:
SACC
Coding:
S
Voltage Rating:
630.0 V
Mating Type:
Snap-In
Shell Size:
M12
Housing Material:
Polymer
Contact Plating:
Gold
Contact Material:
Copper
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-40°C
pdf icon
M12 Connector S-Coded 1404641-ab2bef0a(datasheets)
