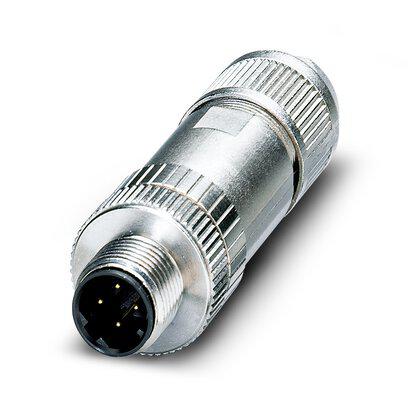

Phoenix Contact Circular Connector, D-Coded, IDC Termination Method - SACC-M12MSD-4Q SH - 1543223 When you need to transfer info at high speed, plug in this circular connector from Phoenix Contact. As it's D-coded, the straight-bodied unit transfers data at speeds up to 100Mb, so you can use it with network cables in Ethernet and ProfiNet systems. The M12-sized plug has four contacts to achieve a secure in-line connection with your Cat5 Ethernet cables. Each contact has a current rating of 1.75A, making the connector a reliable choice for high-powered telecommunications systems.The device has an IP67 rating to indicate it's dustproof and protected against submersion in 1m of water for up to 30 minutes. It stands up to wear and tear, thanks to a sturdy PA66 body and a corrosion-resistant nickel-plated brass knurl.Wiring the connector takes just a jiffy – the fuss-free IDC termination method means you won't need any tools. Its 360° shielding protects from electromagnetic interference to support signals you can count on. Features & Benefits • Safe to use in hazardous settings, thanks to a broad operating temperature range from -40°C to +85°C• Compact 61mm length fits neatly where space is limited• Highly conductive gold-over-nickel plating gives signals a boost• Versatile option for onsite and in-field assembly
