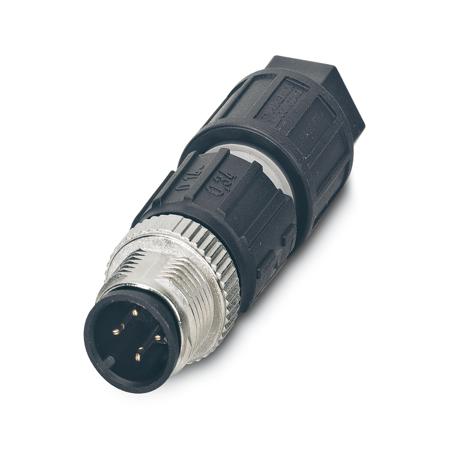

SACC Universal M12 connector - Phoenix Contact These SACC M12 connectors from Phoenix contact are high-quality, and solid connectors. Thanks to the M12 connector having an IP67 rating this makes brilliant use in the field, or even as a permanent solution. The connector is a-coded and you can simply connect your cable via an IDC (Insulation-Displacement Connector) meaning you do not need any special tools to get your M12 cable plugged in and also making it very flexible.

The SACC M12 connectors also feature Phoenix Contacts super-fast QUICKCON technology that allows you to effortlessly connect your cable in less than 80% of the time. QUICKCON is also backed by a gas-tight rating and vibration resistance for ultimate protection. Features and benefits:

• Excellent use in the field, thanks to its high degree of protection and QUICKCON technology


• IP67 rated once mated on both ends


• A-coded


• IDC connection method for a simplistic installation


• Knurl built from a Zinc die-cast for a premium build quality


• External cable diameter - 4mm up to 8mm

Applications: The SACC M12 connectors can be used in, but not limited to:

• Reliably transmit ethernet


• PROFINET


• PROFIBUS


• Automation

What is IDC (Insulation-Displacement Connector)? IDC simply is a connection method that means you do not have to strip any wires. Internal blades splice through your cables insulation and form a solid connection with the metal. This not only saves you needed any specialist tools to strip wires, but means you can use these connectors on the field effortlessly. What is an M12 connector? M12 connectors are a type of industrial circular connectors. The number 12 stands for the locking thread typically and they're typically used in automation, actuators, sensors and industrial ethernet. M12 connectors can come in multiple different coding and positions. The SACC series are straight connectors, with an a-coding and IDC connection.
