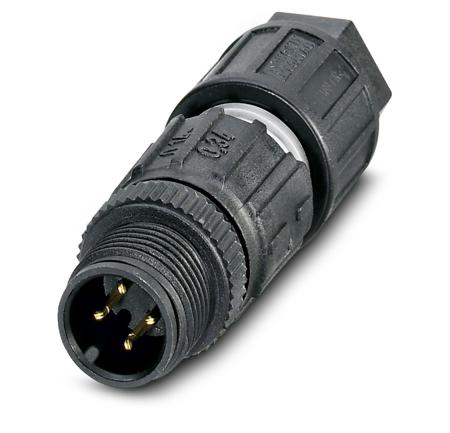

1641714 Phoenix Contact Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Plug, Male, IP65, IP67, SACC Series

Phoenix Contact SACC Straight Connector SACC series of universal connectors come supplied in various connection options and are supplied in a wide variety of orientations to ensure your application is covered IP67 rated
M12 x 1mm thread and 7/8"-16UNF connection options
Zinc die-cast nickel-plated & plastic construction options available
Insulation displacement termination options available, which make connection simple and saves time as no wire-stripping is required
Cable screw termination available on plastic variants

Phoenix Contact Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Plug, Male, IP65, IP67, SACC Series

Manufacturer:
Manufacturer Part No:
1641714
Enrgtech Part No:
ET12251219
Warranty:
Manufacturer
£ 14.13
Checking for live stock
Number of Contacts:
4
Mounting Type:
Cable Mount
Connector Size:
M12
Plug/Socket:
Plug
Contact Gender:
Male
Termination Method:
IDC
IP Rating:
IP65, IP67
Current Rating:
4.0A
Series:
SACC
Body Orientation:
Straight
Voltage Rating:
125.0 V
Coding:
A
Shell Size:
16.3
Housing Material:
Polymer
Contact Plating:
Gold over Nickel
Contact Material:
Bronze
Maximum Operating Temperature:
+80°C
Minimum Operating Temperature:
-25°C
pdf icon
Sensor/actuator connector - SACC-M12MS-4QO-0,34 - 1641714-b69bcda0(datasheets)
