Binder series 814 M12 power connectors with S-Coding
Binder series 814 M12 power connectors with S-Coding. The S-coding eliminates the possibility of mis-mating with other M12 connectors. These M12 connectors are ideally suited for power supply applications amongst others, durable circular connectors rated at up to 12 A per contact at a maximum 630 V are IP 67 rated and feature screw termination contacts.
Accepts max. 16 AWG wires
Cable diameters from 8 to 10 mm
Cable diameters from 8 to 10 mm

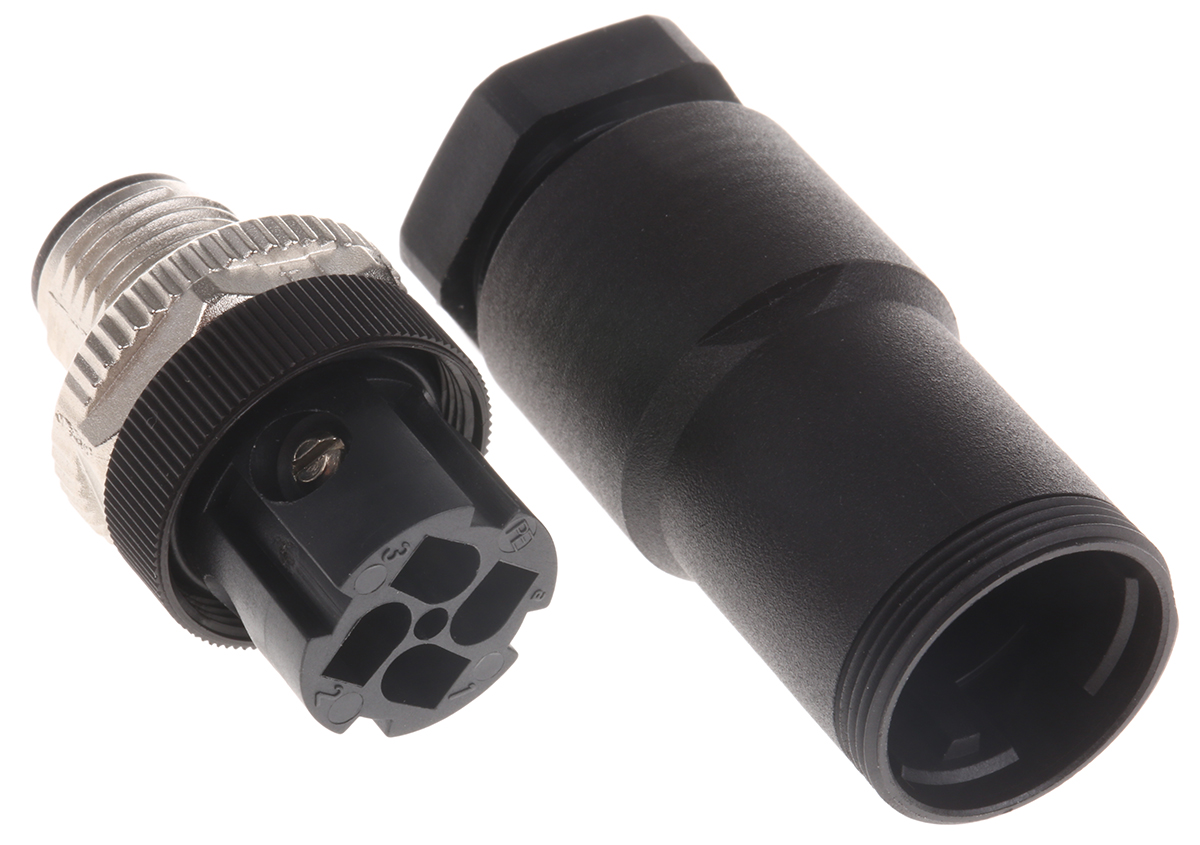

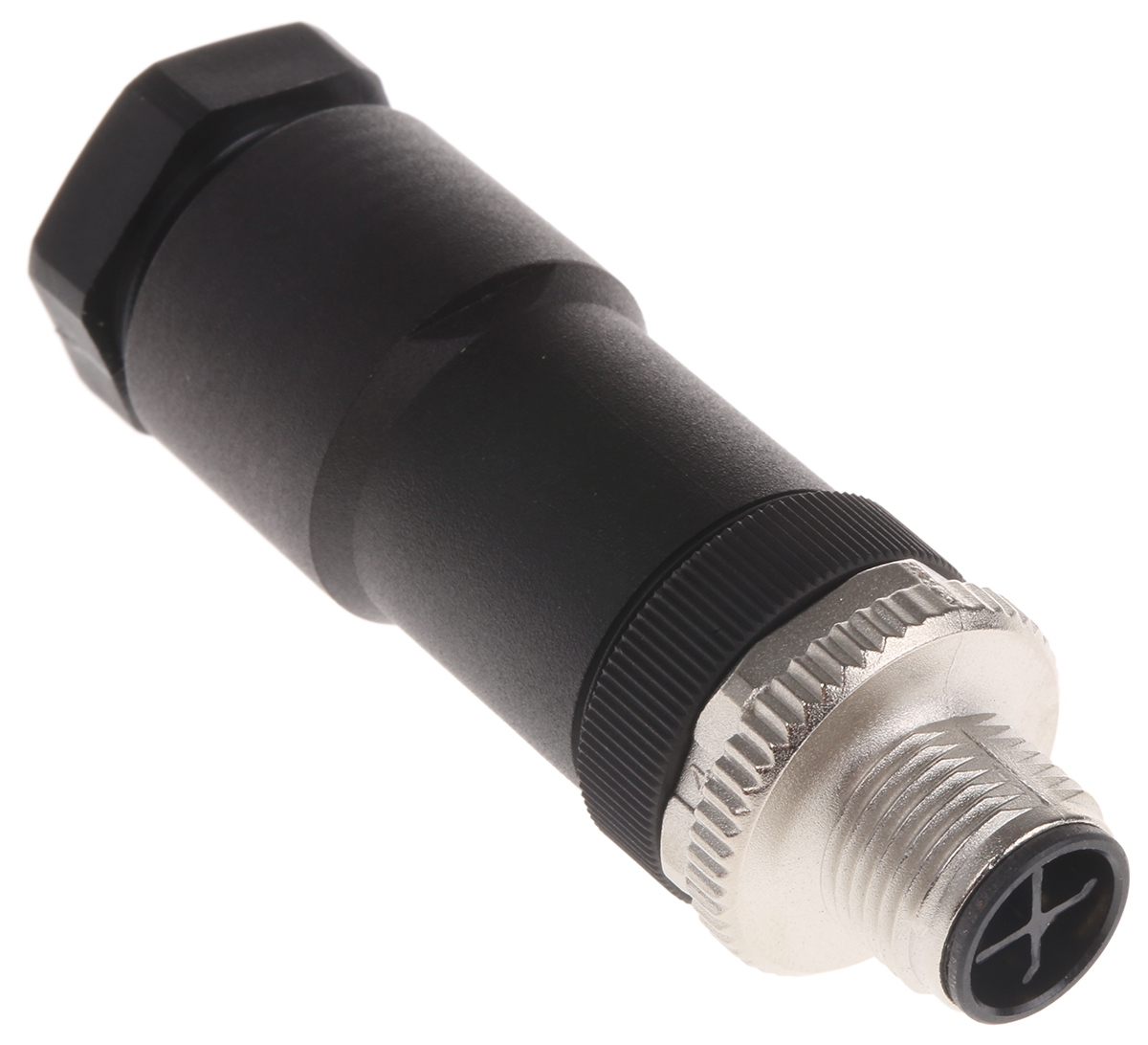

Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67, 814 Series
Manufacturer:
binder
Manufacturer Part No:
99-0689-19-04
Enrgtech Part No:
ET14060708
Warranty:
Manufacturer
£ 16.48
Checking for live stock
Number of Contacts:
4
Mounting Type:
Cable Mount
Connector Size:
M12
Plug/Socket:
Plug
Contact Gender:
Male
Termination Method:
Screw
IP Rating:
IP67
Current Rating:
12.0A
Series:
814
Body Orientation:
Straight
Voltage Rating:
630.0 V
Coding:
S
