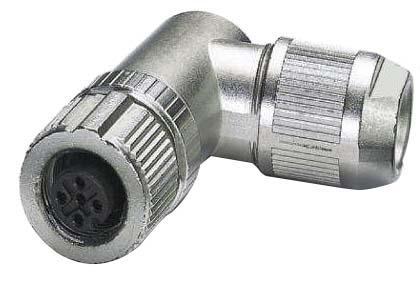

1424661 Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, Female, IP65, IP67, SACC Series

Connector, 5-position, shielded, Socket angled M12 Screw locking, A-coded, Push-in connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm Safe use in the field, thanks to a high degree of protection
Flexible: connectors for on-site assembly
Save time, thanks to installation with SPEEDCON fast locking system
Spring-cage connection
Quick and easy installation, thanks to Push-in connection technology
Easy tool free wiring with the push-in connection

For more information please check the datasheets.

Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, Female, IP65, IP67, SACC Series

Name: Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, Female, IP65, IP67, SACC Series
Brand: Phoenix Contact
SKU: ET14625432
Availability: InStock

Manufacturer:

Phoenix Contact

Manufacturer Part No:

1424661

Enrgtech Part No:

ET14625432

Warranty:

Manufacturer

£ 27.42

Checking for live stock

Number of Contacts:

Mounting Type:

Cable Mount

Connector Size:

M12

Plug/Socket:

Plug

Contact Gender:

Female

Termination Method:

Push In, Screw

IP Rating:

IP65, IP67

Current Rating:

4.0A

Body Orientation:

Right Angle

Series:

SACC

Coding:

Voltage Rating:

48.0 V , 60.0 V

Datasheet-058fee4e(datasheets)

Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, Female, IP65, IP67, SACC Series
