Phoenix Contact D-sub interface module VIP VARIOFACE The VIP VARIOFACE D-sub interface modules from Phoenix Contact are dIN rail mounted, plug-in D-sub modules that are designed to be slotted onto an NS35 rail. These interface modules have a 1:1 connection, feature screw connection terminal blocks and not to mention, adhere to the standard IEC 60603-13. The VIP VARIOFACE devices come in a variety of positions from 9 up to 50 to suit all your needs.

This VIP VARIOFACE module will allow you to connect to your other Phoenix Contact peripherals such as high pos connectors from the VIP & UMK range while also allowing effortless connection to FMK, FLMK and similar cabinet wiring technologies. Features and benefits:

  • D-sub units transfer 2.5 A/125 V AC/DC

  • Metal footing to ensure reliability over time and optimum safety

  • IEC 60603-13 standard

  • Screw connection providing a super-secure and reliable connection.
Complete Line: The VIP VARIOFACE series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.

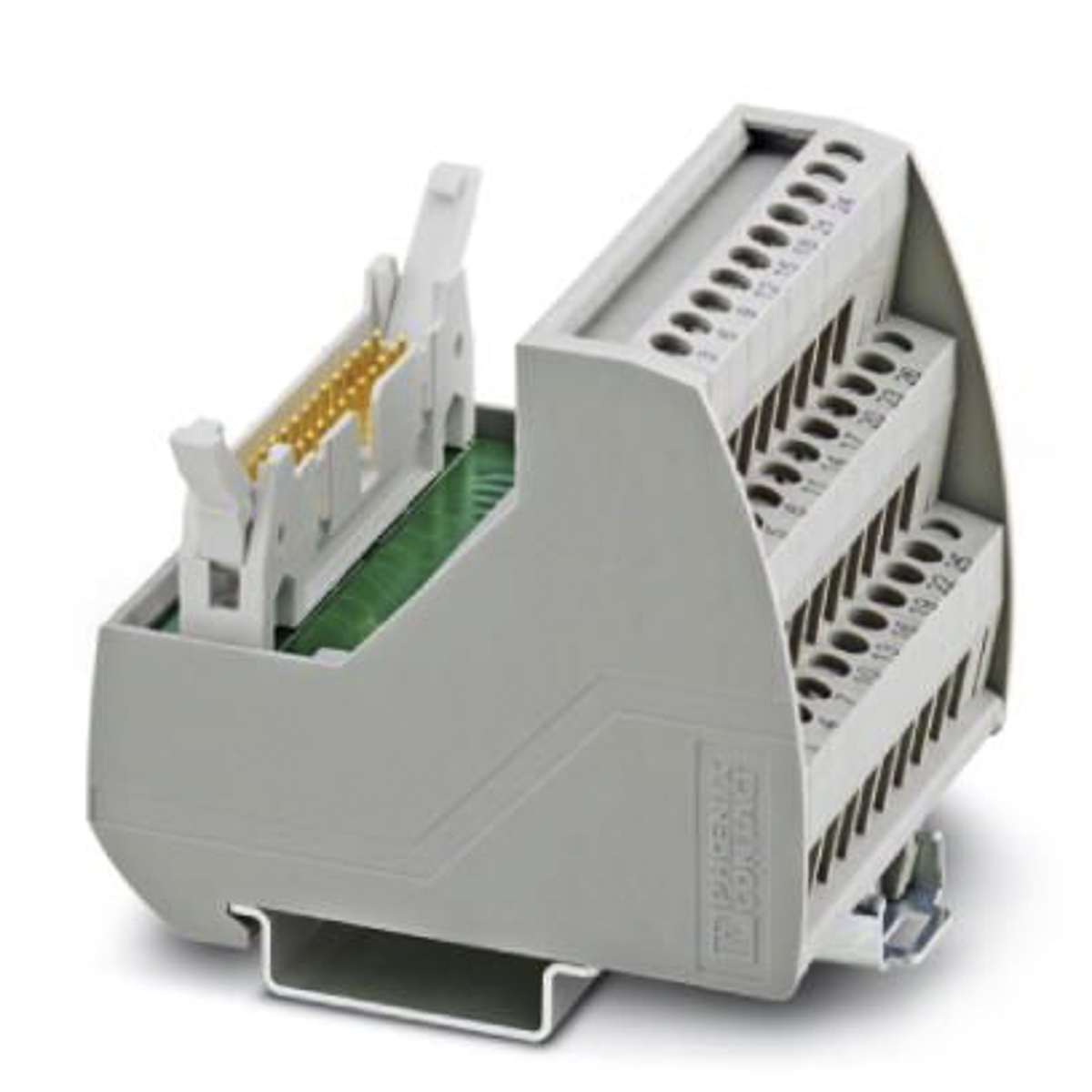

Phoenix Contact VIP Series 26-Contact Male Interface Module, Flat Ribbon Cable Connector, DIN Rail Mount, 1A

Manufacturer:
Manufacturer Part No:
2315052
Enrgtech Part No:
ET11081679
Warranty:
Manufacturer
Checking for live stock
Gender:
Male
Wire Size:
24 → 12 AWG
Number of Contacts:
26
Connector Type:
Flat Ribbon Cable
Body Orientation:
Straight
Mounting Type:
DIN Rail Mount
Voltage Rating:
60 V ac/dc
Current Rating:
1A
Cable CSA:
4mm²
Dimensions:
57.1 x 62 x 69mm
Depth:
69mm
Length:
57.1mm
Maximum Operating Temperature:
+50°C
Width:
62mm
Minimum Operating Temperature:
-20°C
Series:
VIP
pdf icon
VIP-3/SC/FLK26 VARIOFACE Module Data Sheet-22fac428(datasheets)
pdf icon
Line Drawing - 2315052-b9885d0c(datasheets)
pdf icon
Les incontournables Phoenix Contact-3dd4153a(datasheets)
